Home >> Infiniti >> 2012 >> M37 x >> Repair and Diagnosis >> Transmission >> Transfer Case >> Unit Disassembly And Assembly >> Front Case And Rear Case >> Exploded View

Exploded View

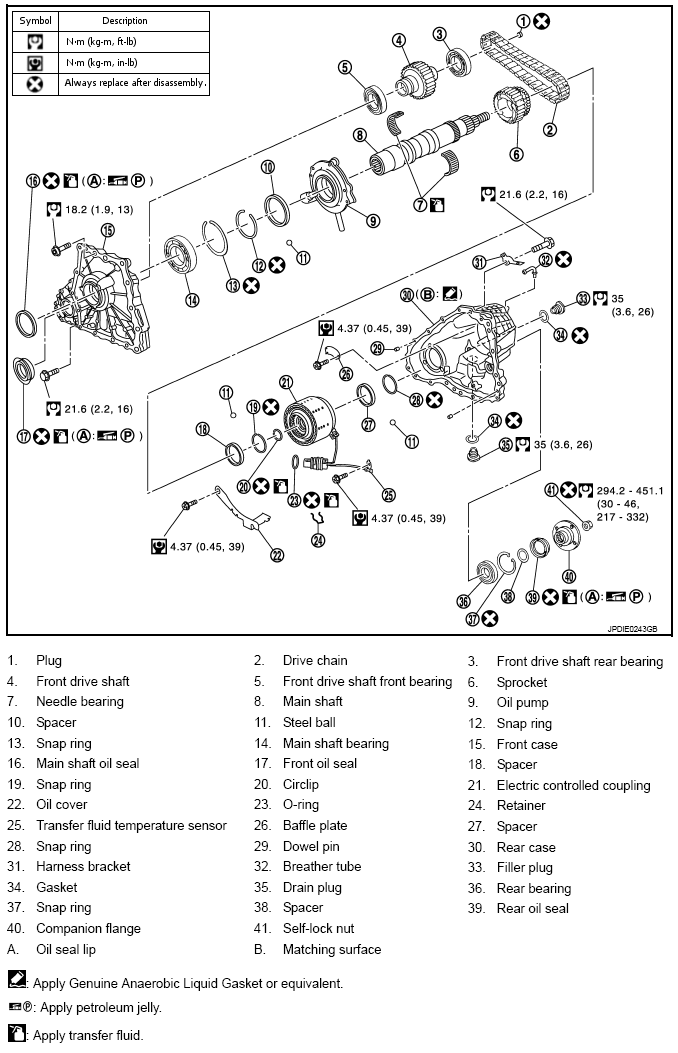

Fig 1: Exploded View Of Front Case And Rear Case With Torque Specifications

G08648209

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
