Exploded View

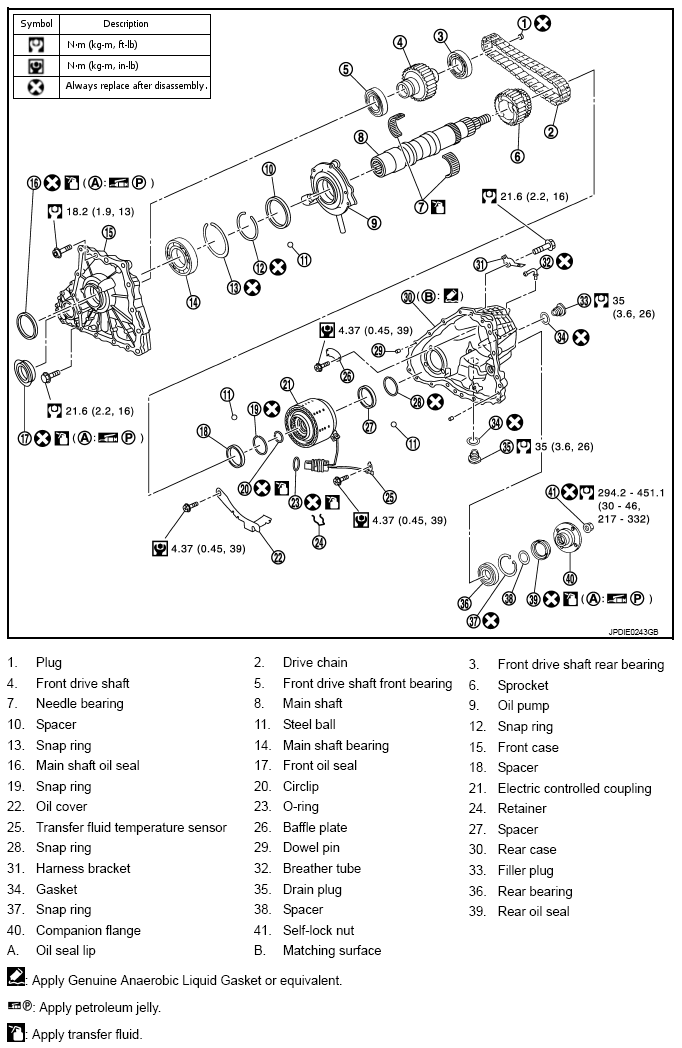

Fig 1: Exploded View Of Front Drive Shaft And Drive Chain With Torque Specifications

G08648257

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
