Home >> Infiniti >> 2012 >> QX56 RWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Removal And Installation >> Front Stabilizer >> Exploded View

Exploded View

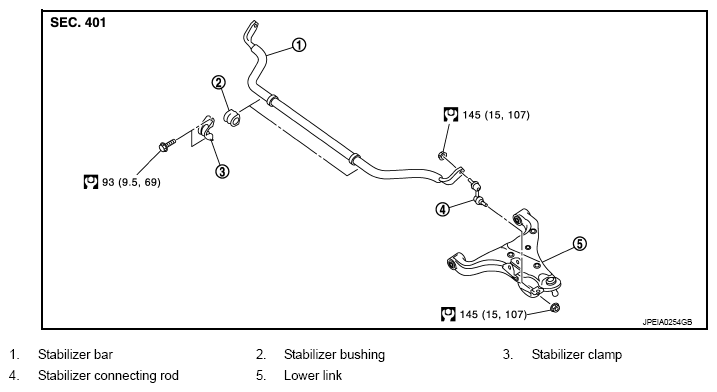

Fig 1: Exploded View Of Front Stabilizer With Torque Specifications

G08255153

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
