Home >> Infiniti >> 2013 >> EX37 Base, AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Unit Disassembly And Assembly >> Front Case And Rear Case >> Exploded View

Exploded View

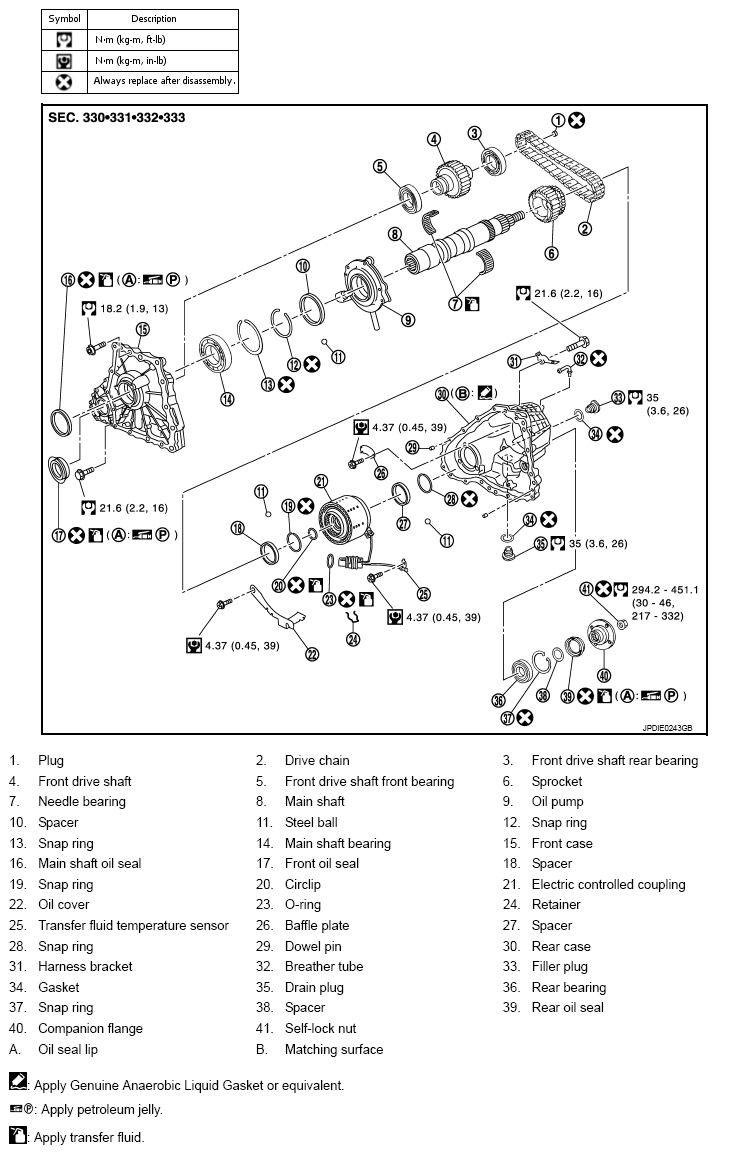

Fig 1: Exploded View Of Front And Rear Case With Torque Specifications

G08992880

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
