Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Unit Disassembly And Assembly
>>
Oil Pump
>>
Exploded View
Exploded View

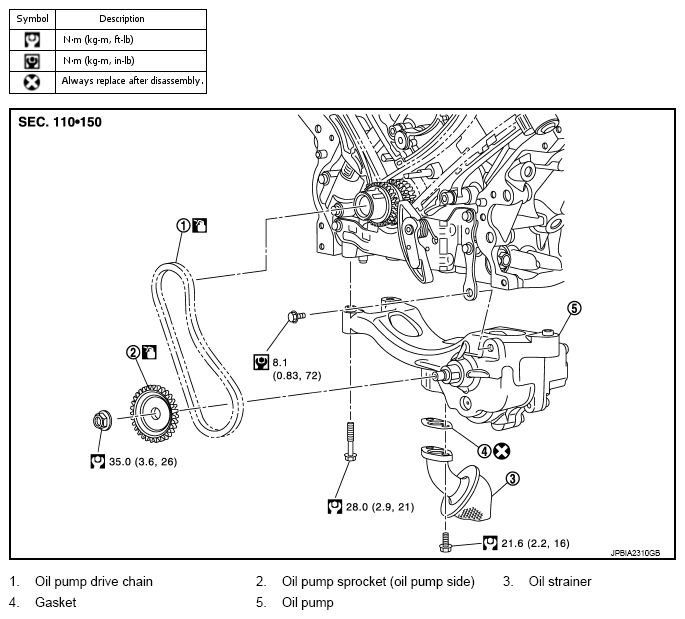

Fig 1: Exploded View Of Oil Pump
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
