Direct Clutch
>>
Exploded View
Exploded View

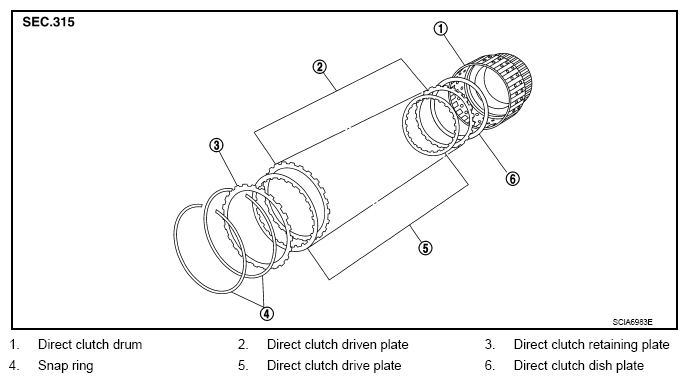

Fig 1: Exploded View Of Direct Clutch
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
