Infiniti
>>
2013
>>
FX50
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
System Description
>>
AWD System
>>
System Diagram
>>
Cross-Sectional View
Cross-Sectional View

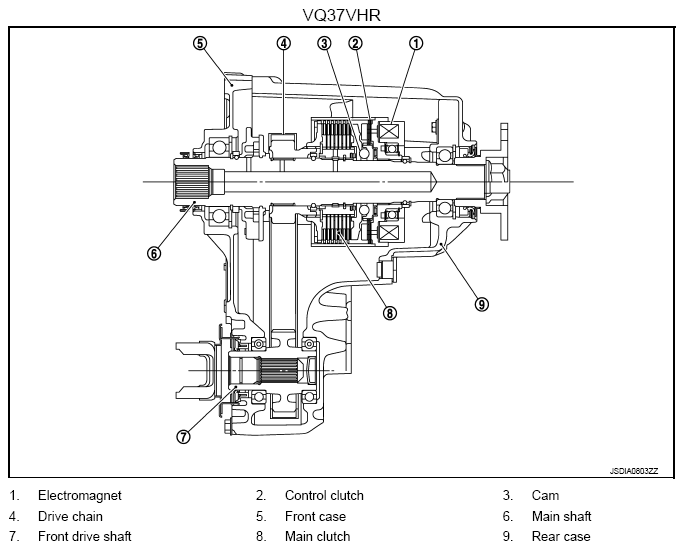

Fig 1: Cross-Sectional View Of Transfer Case (VQ37VHR)
Courtesy of NISSAN NORTH AMERICA, INC.

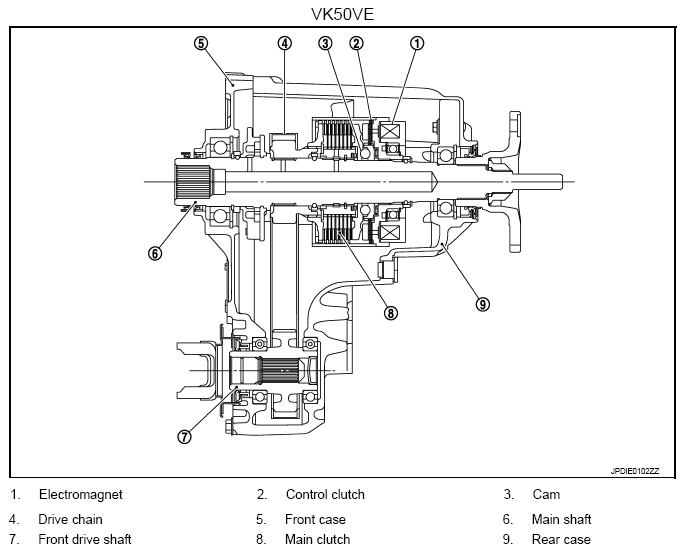

Fig 2: Cross-Sectional View Of Transfer Case (VK50VE)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
