Home >> Infiniti >> 2013 >> G37 Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security Control System (Convertible) >> System Description >> Intelligent Key System/Engine Start Function >> Component Parts Location

Component Parts Location

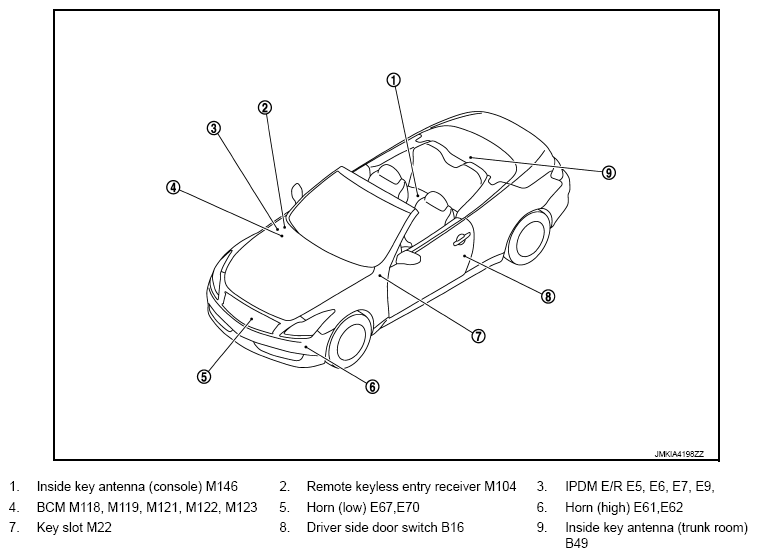

Fig 1: Identifying Intelligent Key System/Engine Start Function Components Location (1 Of 2)
G08740582Courtesy of NISSAN NORTH AMERICA, INC.

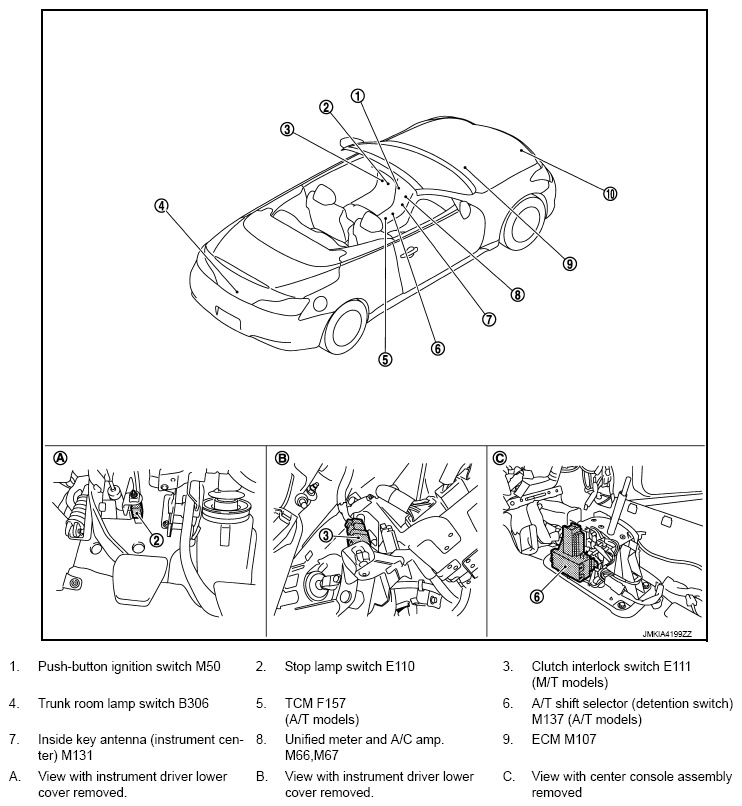

Fig 2: Identifying Intelligent Key System/Engine Start Function Components Location (2 Of 2)
G08740583Courtesy of NISSAN NORTH AMERICA, INC.
