Exploded View

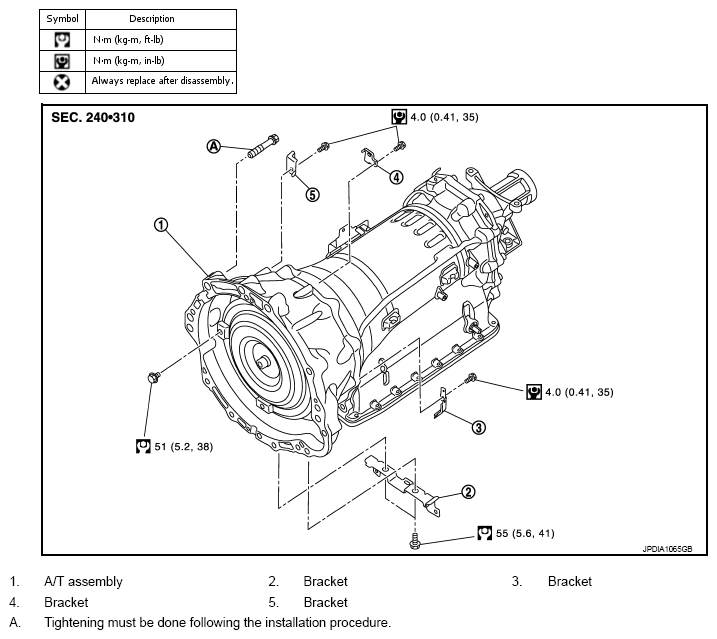

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications

G08740240

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
