Crash Zone Sensor

The crash zone sensor is located behind the radiator and underneath the front air duct. The crash zone sensor sends signals to the air bag diagnosis sensor unit during a frontal collision. This sensor may be identified by a yellow connector.

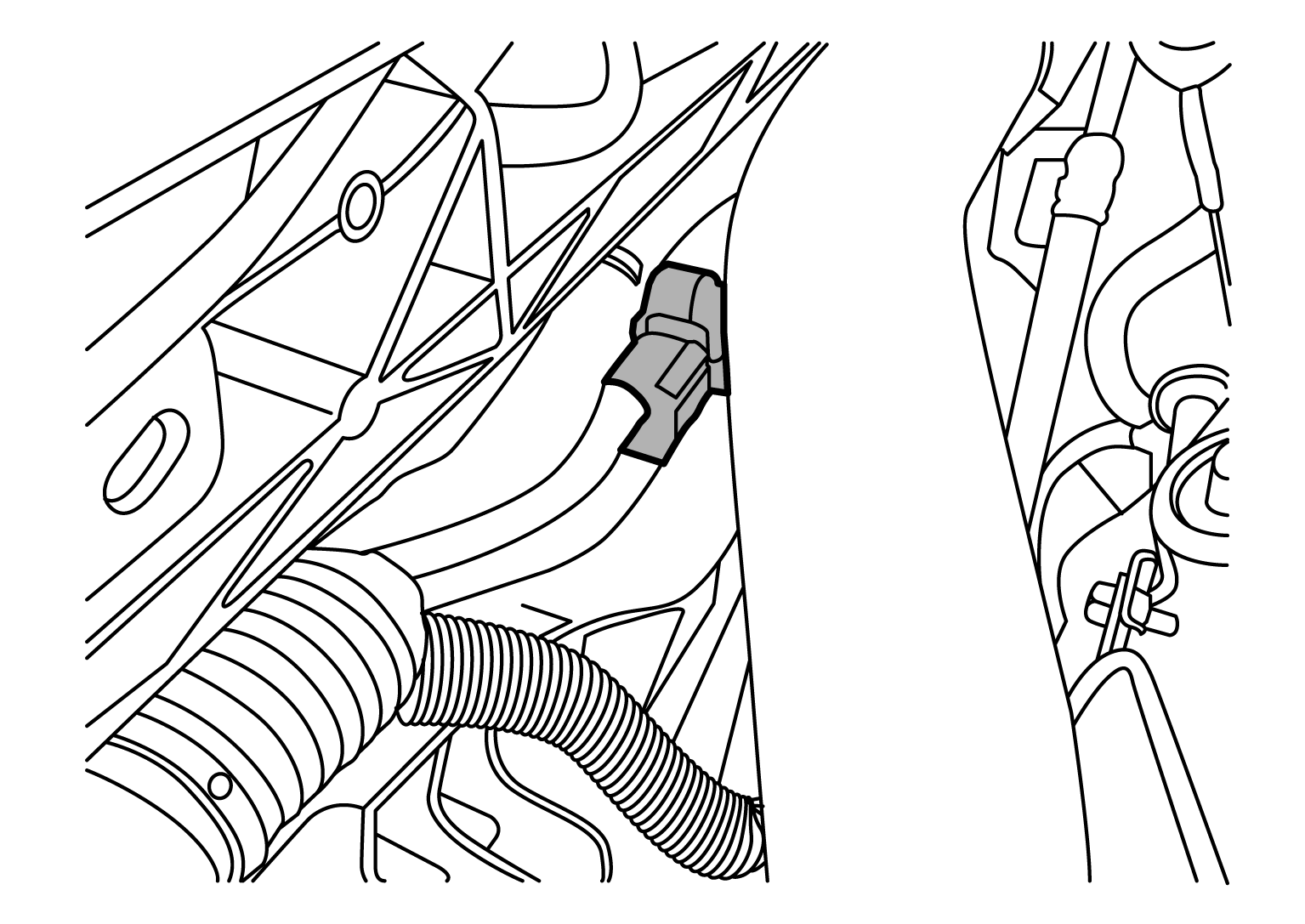

Fig 1: Identifying Crash Zone Sensor
G08856739Courtesy of NISSAN NORTH AMERICA, INC.
