Exploded View

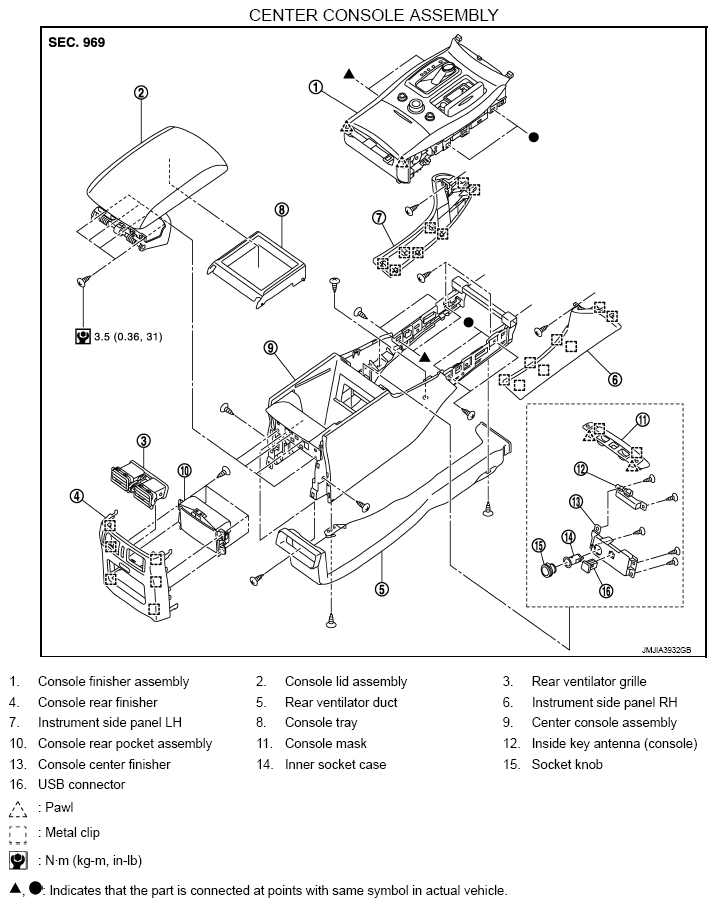

Fig 1: Exploded View Of Center Console Assembly With Torque Specifications
G08901050Courtesy of NISSAN NORTH AMERICA, INC.

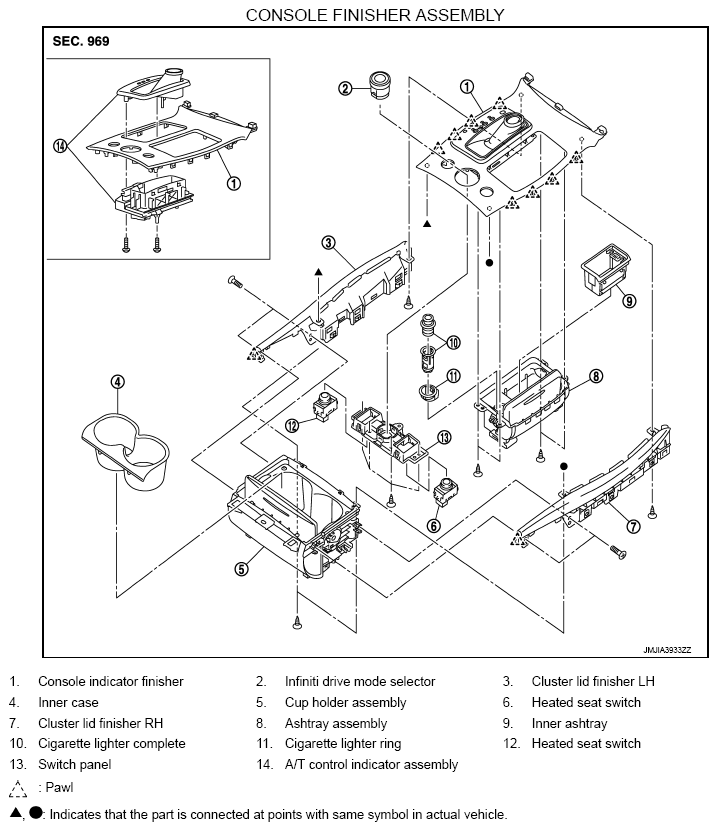

Fig 2: Exploded View Of Console Finisher Assembly With Torque Specifications
G08901051Courtesy of NISSAN NORTH AMERICA, INC.
