Intelligent Key System/Engine Start Function
>>

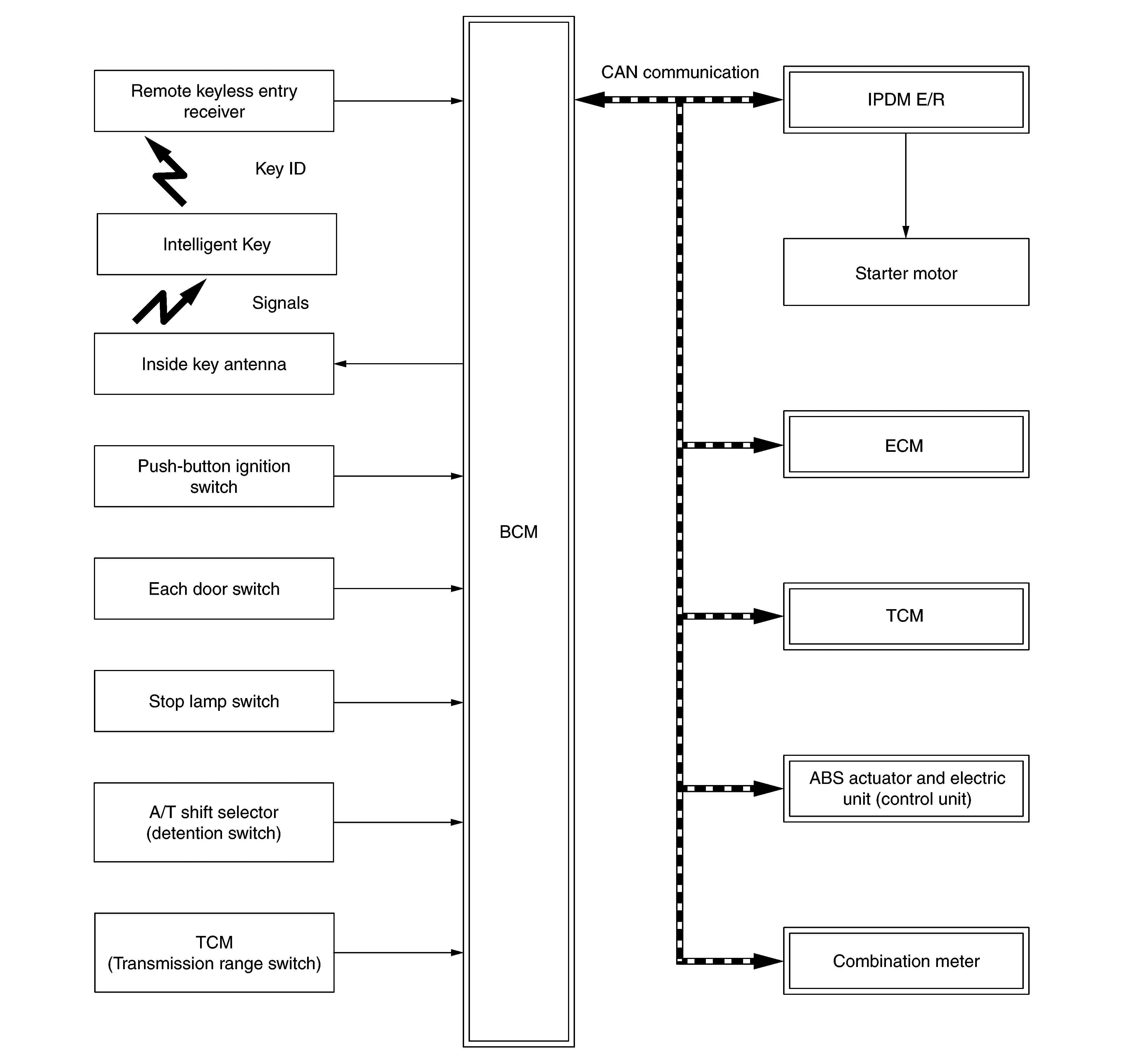

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Diagram
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION: System Diagram
Fig 1: Intelligent Key System/Engine Start Function System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
