2WD: Exploded View

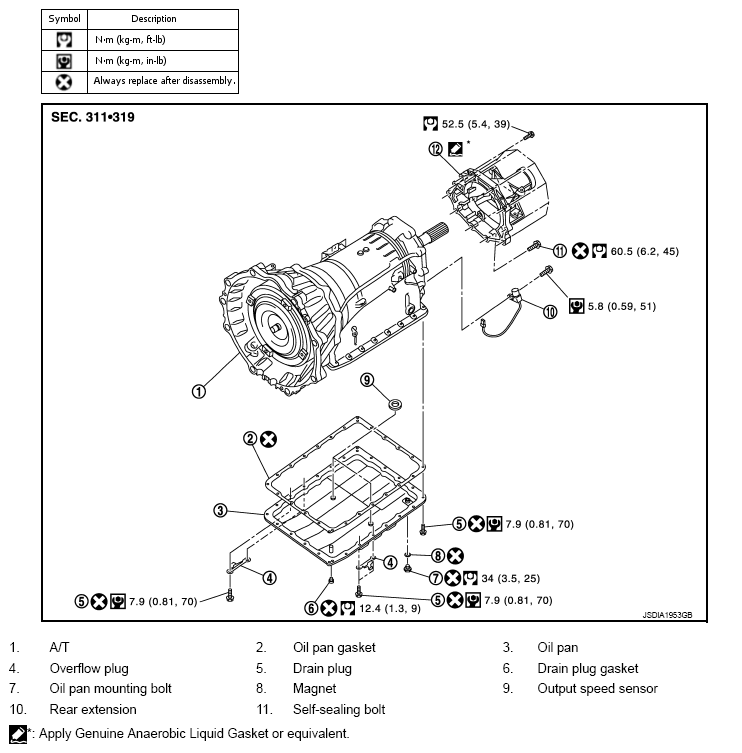

Fig 1: Exploded View Of Output Speed Sensor (2WD) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
