Home >> Infiniti >> 2013 >> M37 x >> Repair and Diagnosis >> Transmission >> Transfer Case >> Unit Disassembly And Assembly >> Main Shaft >> Exploded View

Exploded View

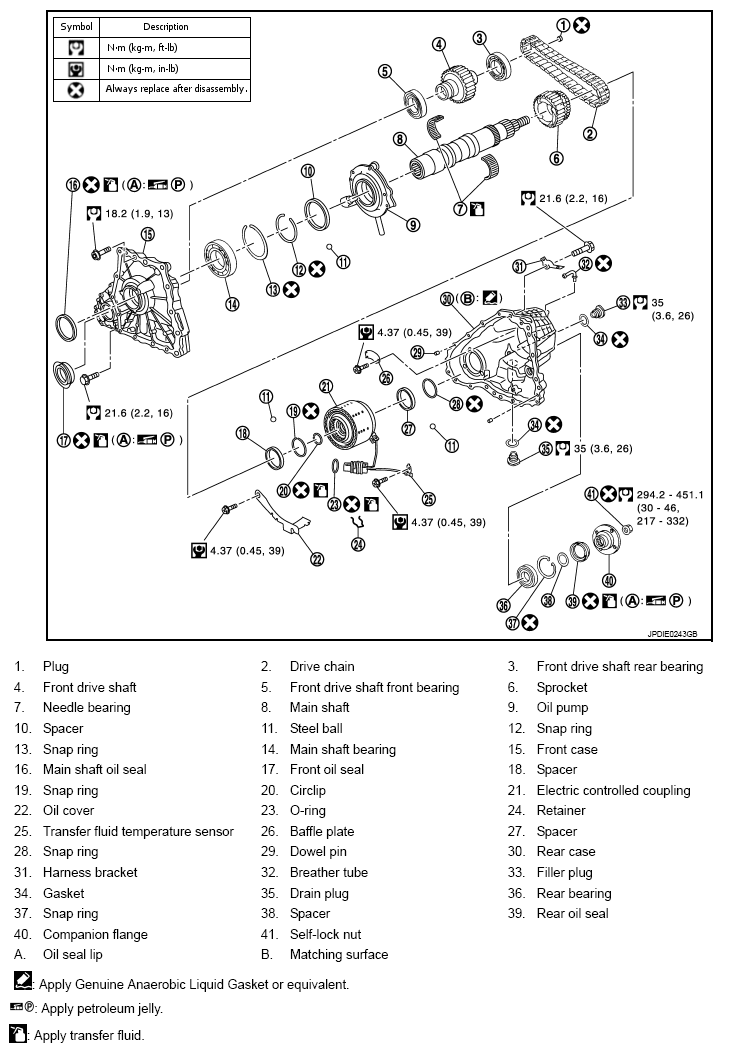

Fig 1: Exploded View Of Main Shaft With Torque Specifications

G08891266

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
