Home >> Infiniti >> 2014 >> Q60 Base, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System (Convertible) >> Removal And Installation >> Fuel Tank >> Exploded View

Exploded View

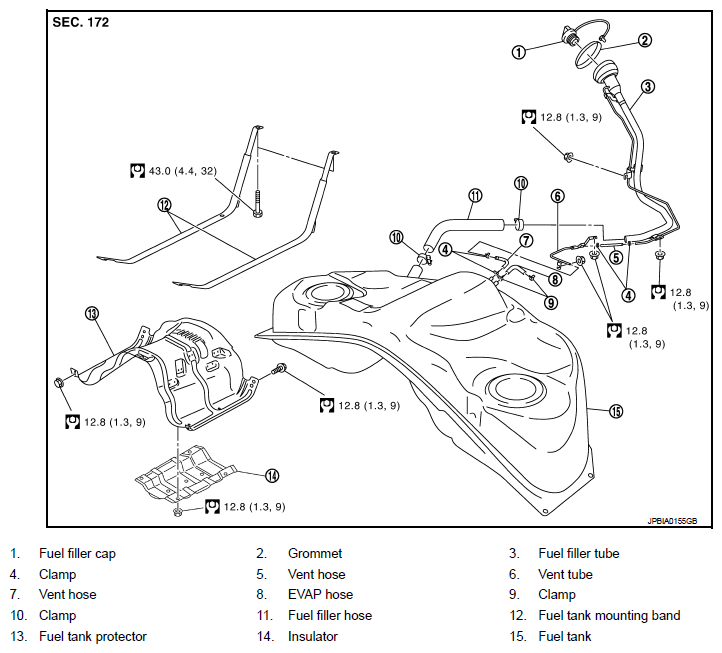

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

G09462924

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for to symbols in the figure.
