Home >> Infiniti >> 2014 >> QX80 AWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Removal And Installation >> Alternator >> Exploded View >> Removal

Exploded View: Removal

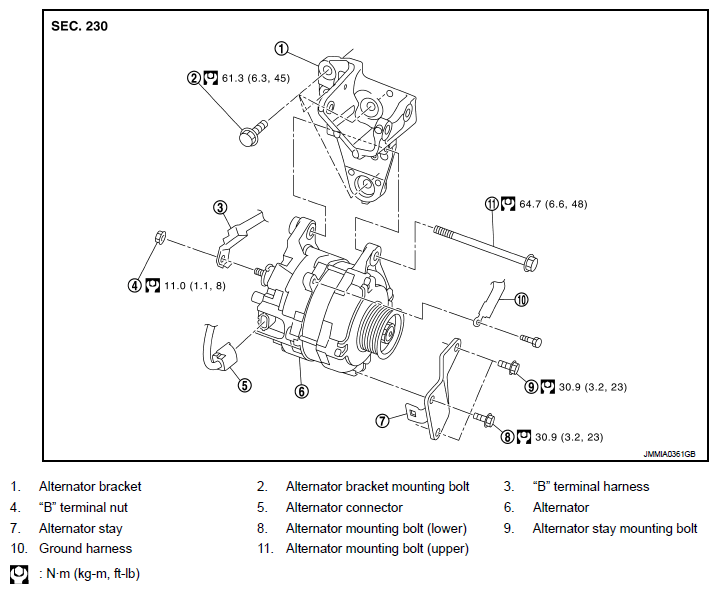

Fig 1: Exploded View Of Alternator With Torque Specifications
G09181914Courtesy of NISSAN NORTH AMERICA, INC.
