Sectional View
Sectional View

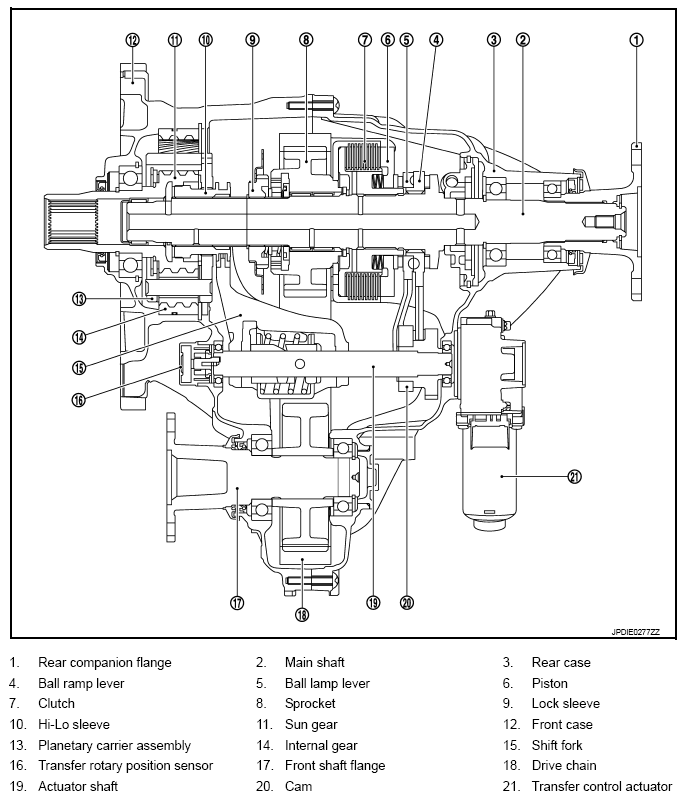

Fig 1: Driveline System Sectional View
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
