Intelligent Key System/Engine Start Function Wiring Diagram

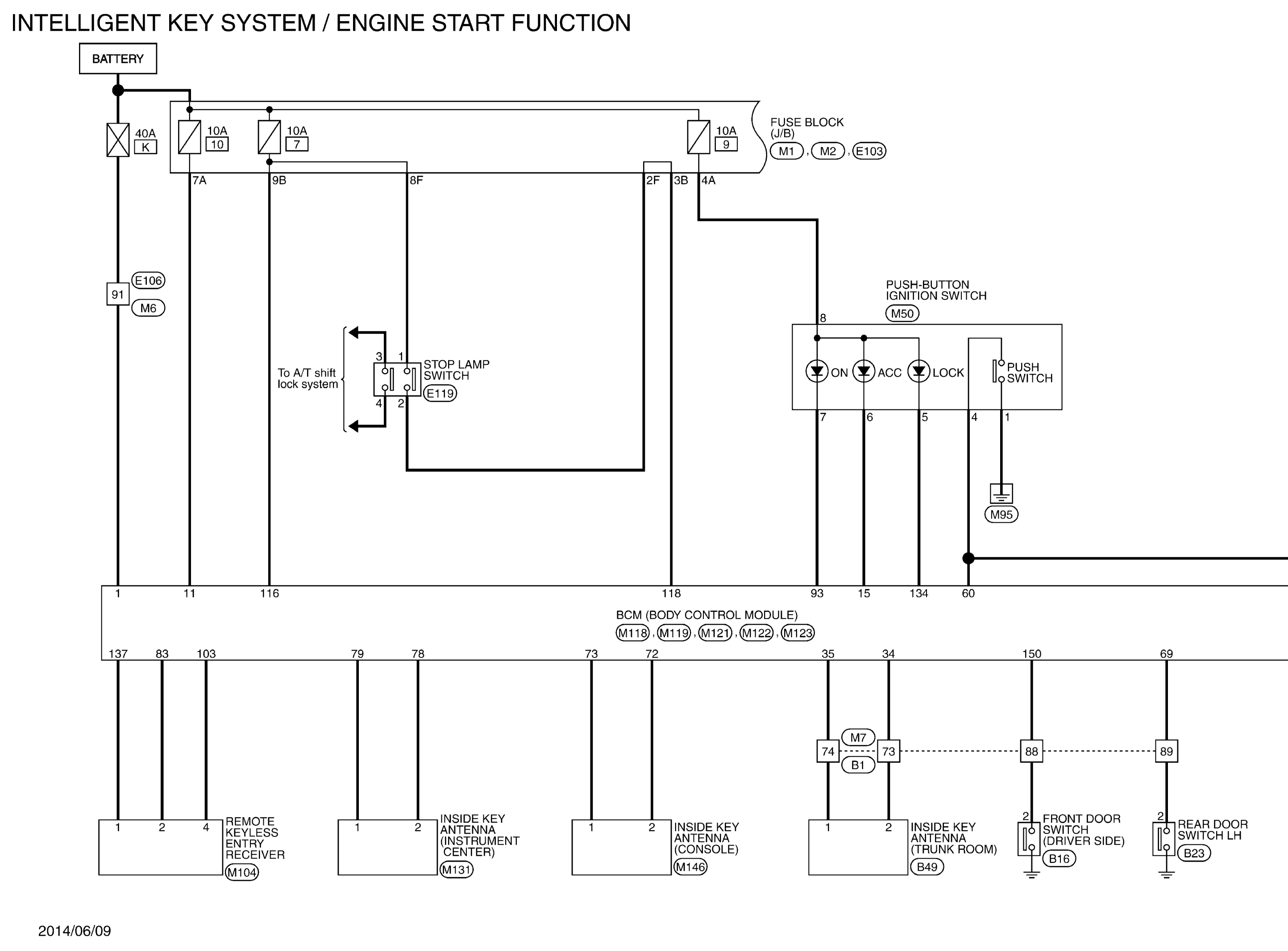

Fig 1: Intelligent Key System/Engine Start Function Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

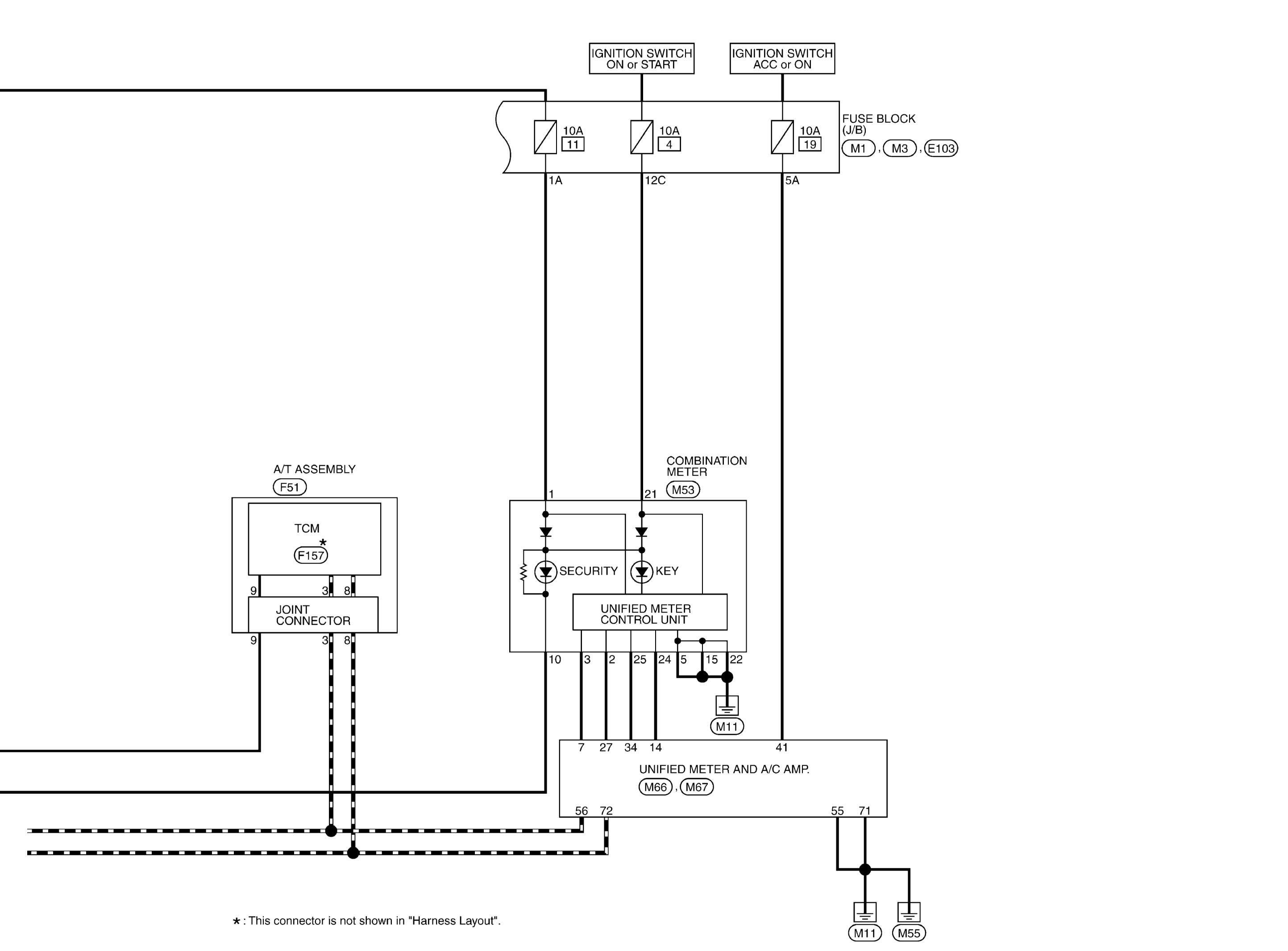

Fig 2: Intelligent Key System/Engine Start Function Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

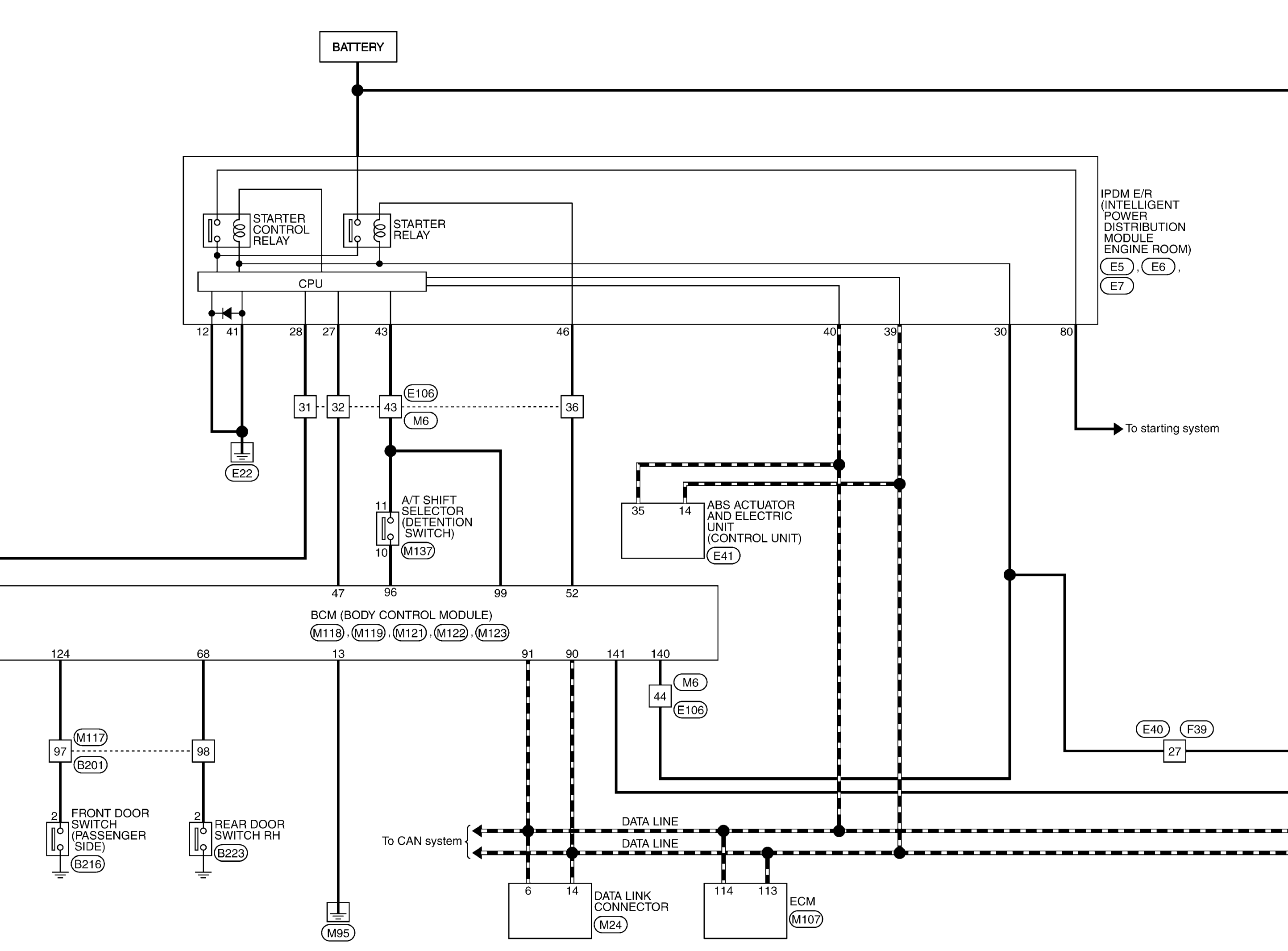

Fig 3: Intelligent Key System/Engine Start Function Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
