Exploded View With Torque Specifications

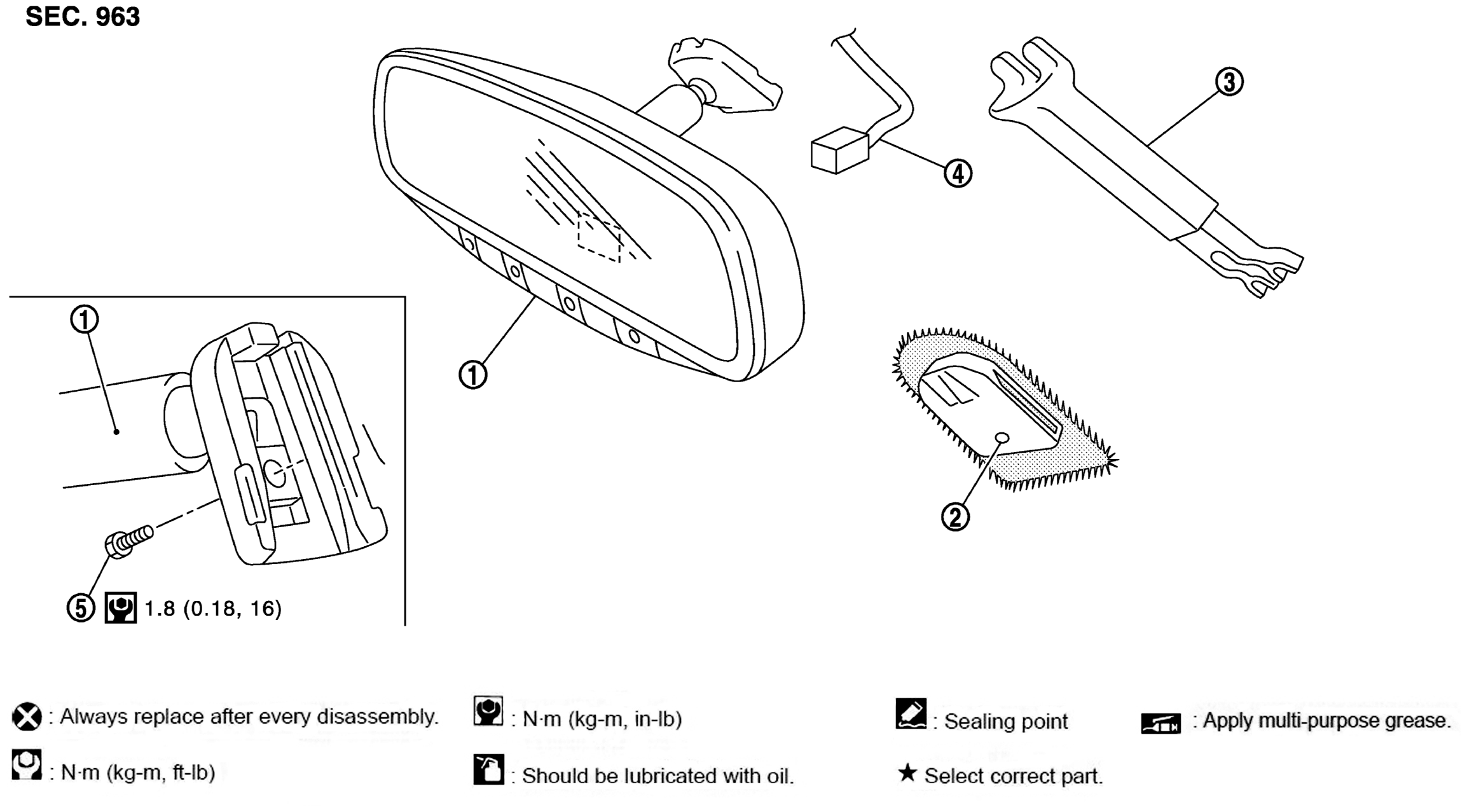

Fig 1: Exploded View Of Inside Mirror With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Inside mirror	2.	Mirror base	3.	Inside mirror cover
4.	Harness connector	5.	TORX bolt
	: N•m (kg-m, in-lb)
