Exploded View With Torque Specifications

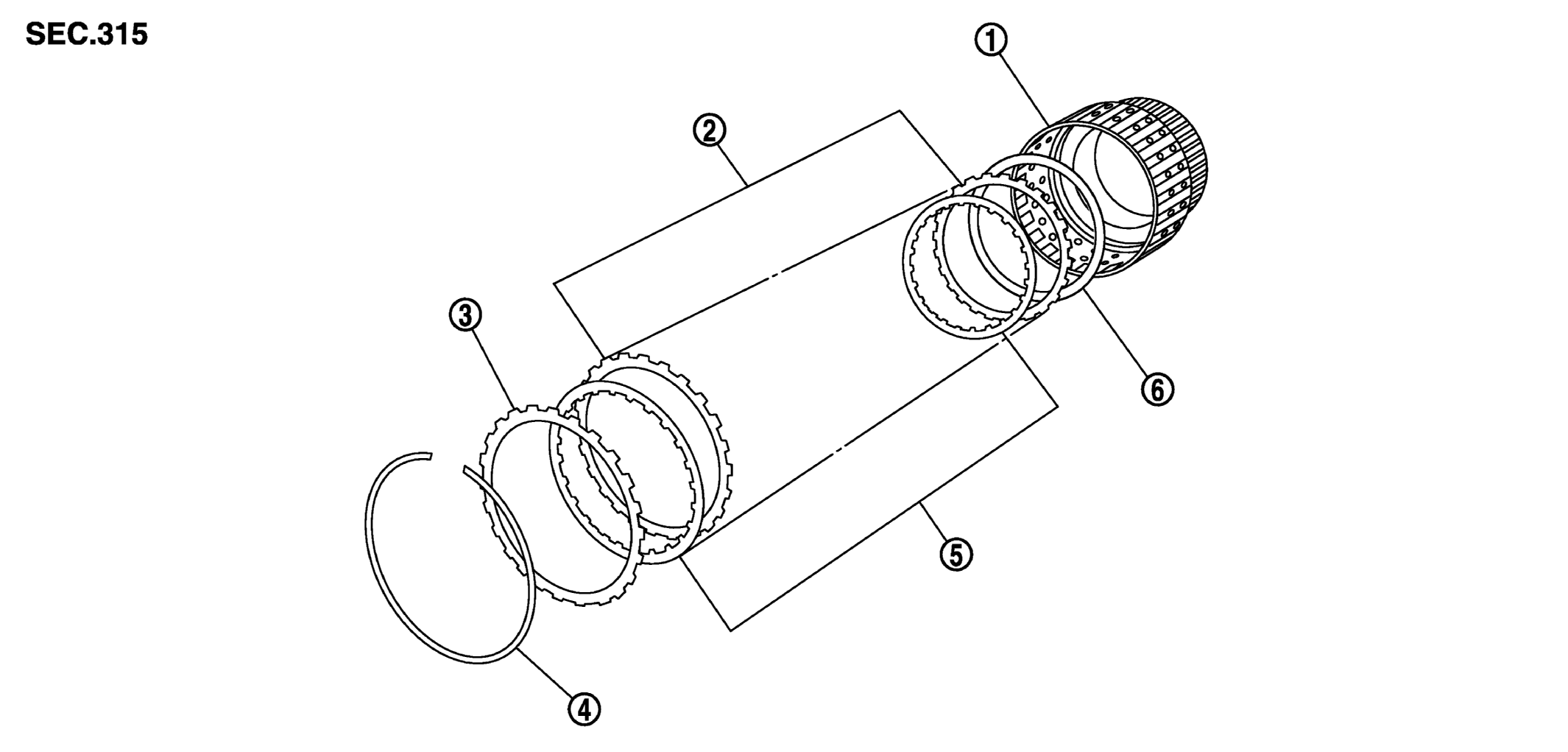

Fig 1: Exploded View Of Direct Clutch

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Direct clutch drum	2.	Direct clutch driven plate	3.	Direct clutch retaining plate
4.	Snap ring	5.	Direct clutch drive plate	6.	Direct clutch dish plate
