System Description
>>
AWD System
>>
System Diagram
>>
Cross-Sectional View
Cross-Sectional View

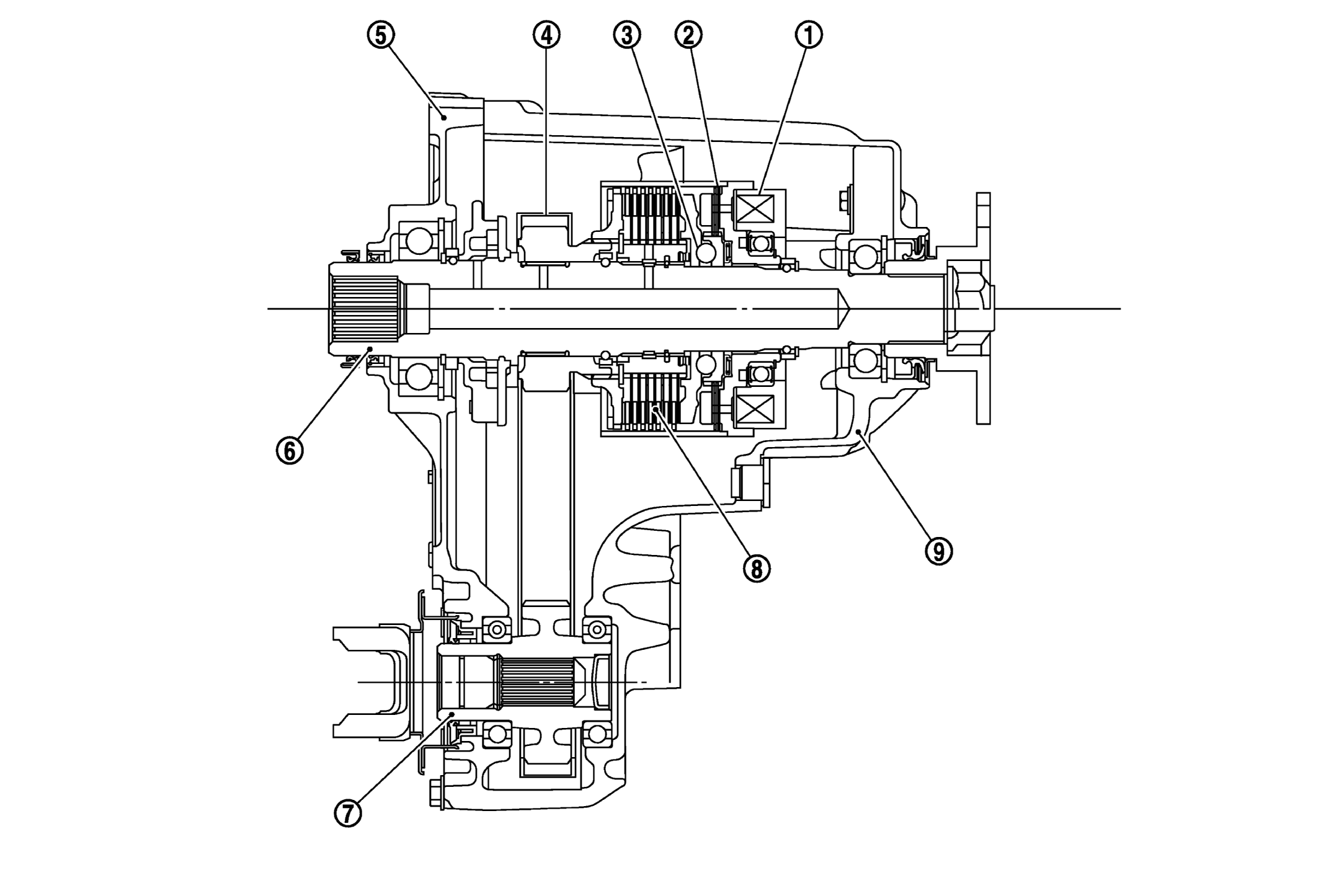

Fig 1: Cross-Sectional View Of Transfer Case
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Electromagnet
2.
Control clutch
3.
Cam
4.
Drive chain
5.
Front case
6.
Main shaft
7.
Front drive shaft
8.
Main clutch
9.
Rear case
Courtesy of NISSAN NORTH AMERICA, INC.
