System Description
>>
Power Window System
>>
System Diagram
System Diagram

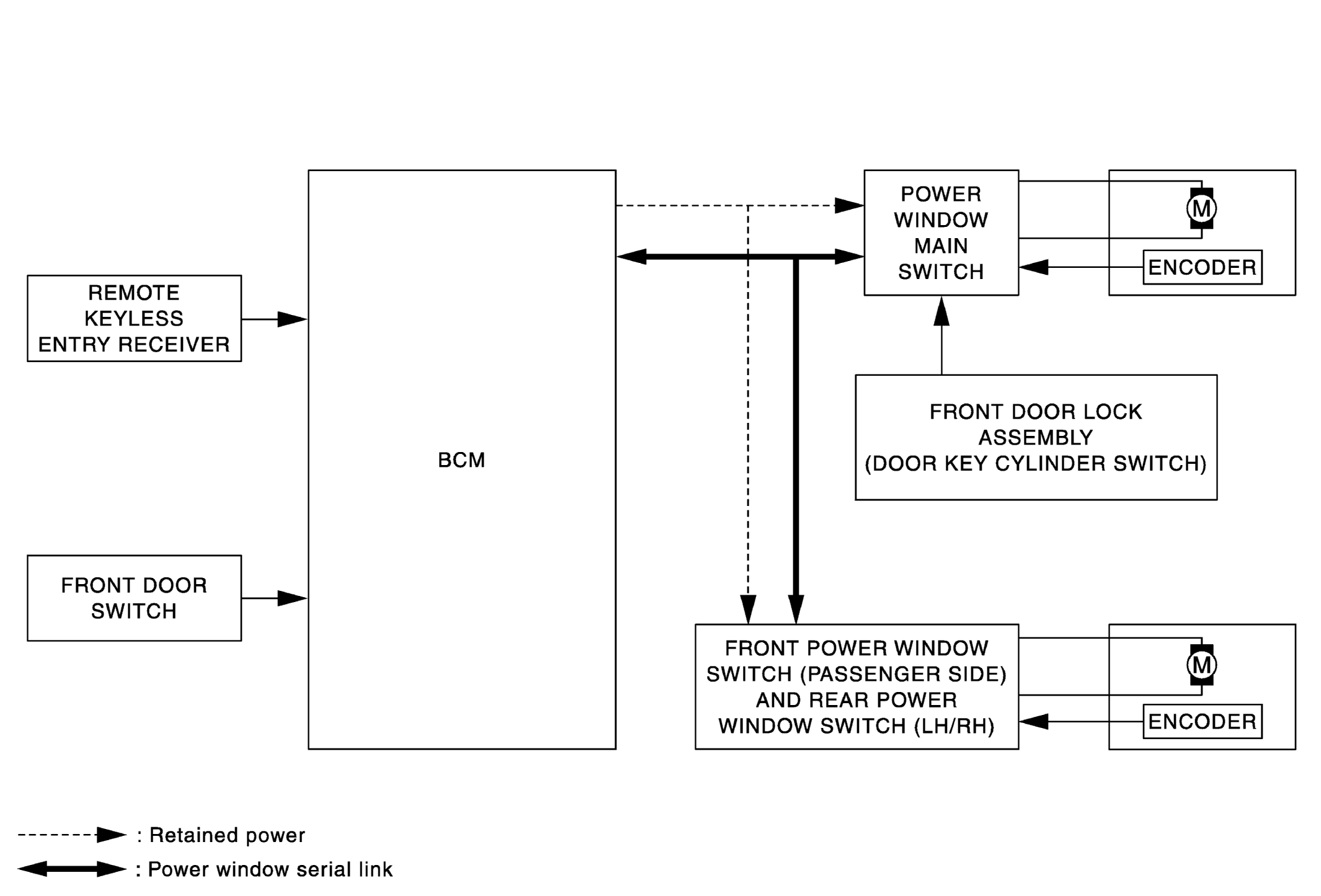

Fig 1: Power Window System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
