SRS Airbag Control System (Convertible)
>>
System Description
>>
Occupant Classification System
>>
Component Parts Location
Component Parts Location

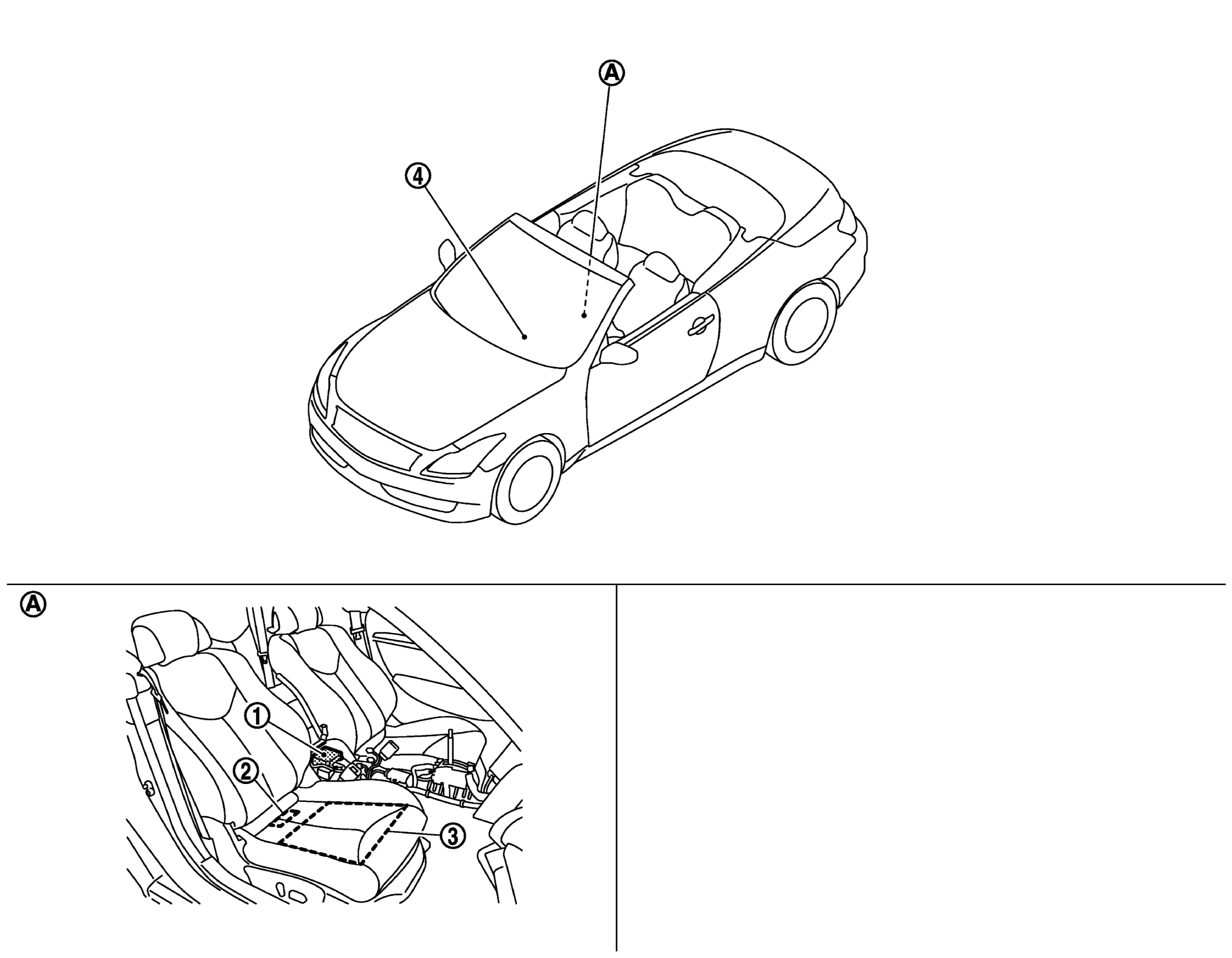

Fig 1: Occupant Classification System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Air bag diagnosis sensor unit
2.
Occupant Classification System control unit
3.
Occupant Classification System seat sensor mat
4.
Passenger air bag OFF indicator
A.
View with center console assembly removed
