Exploded View With Torque Specifications

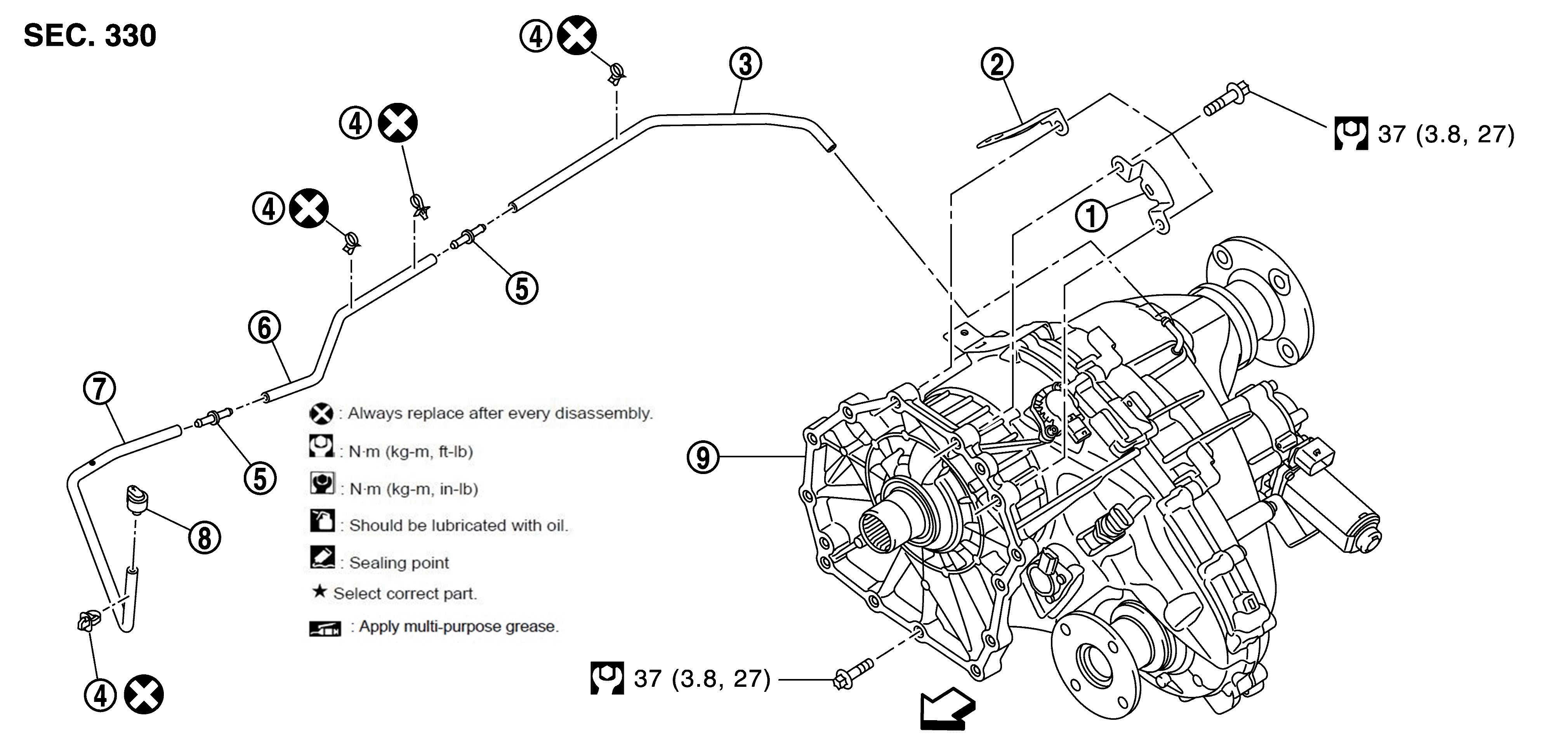

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bracket	2.	Bracket	3.	Breather hose
4.	Hose clip	5.	Hose connector	6.	Breather hose
7.	Breather hose	8.	Breather	9.	Transfer assembly
: Vehicle front
Refer to COMPONENTS for symbols not described above.
