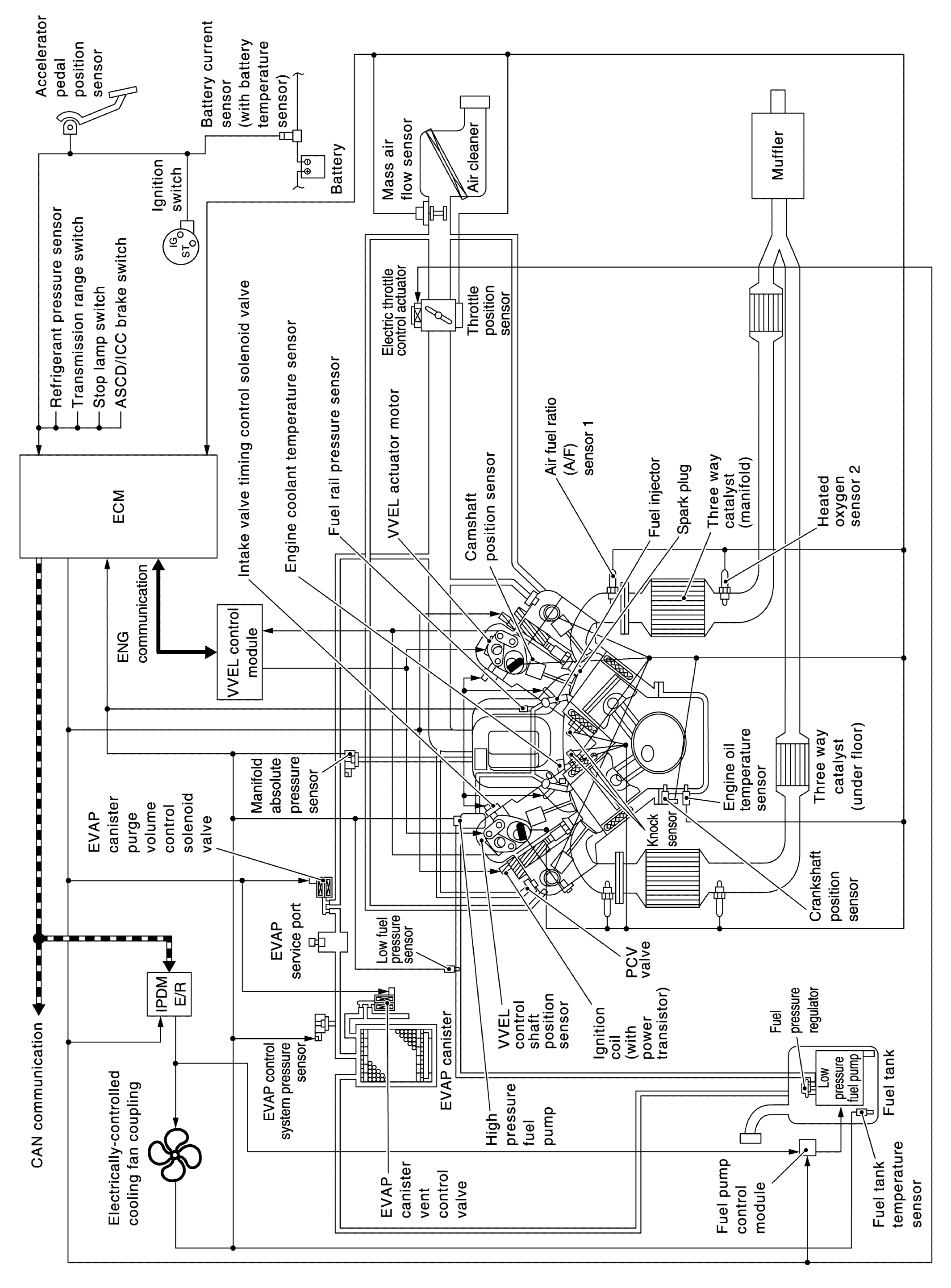

Home >> Infiniti >> 2015 >> QX80 Base, RWD >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Introduction) >> System Description >> System >> Engine Control System >> System Diagram
