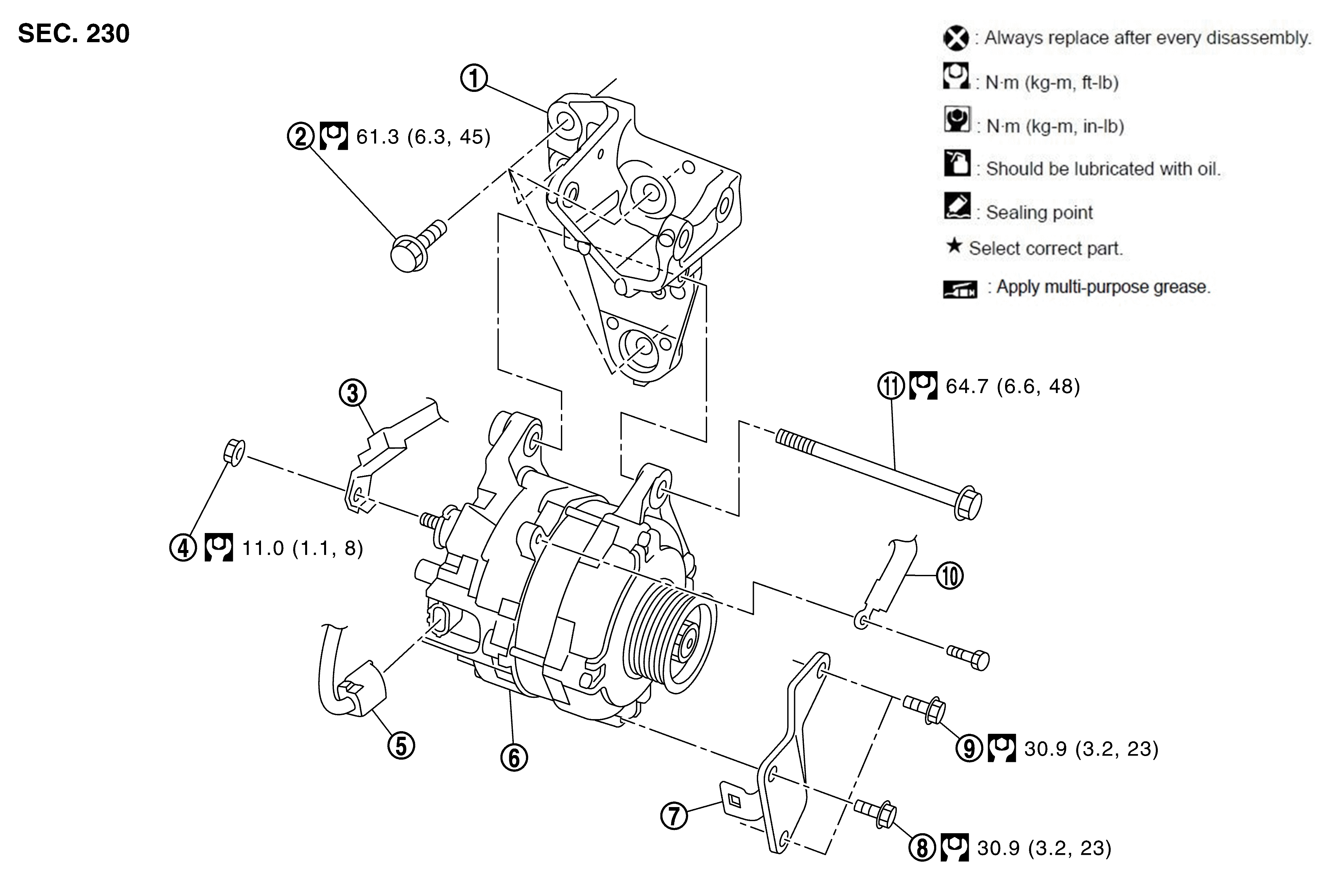

Exploded View With Torque Specifications: Removal
| 1. | Alternator bracket | 2. | Alternator bracket mounting bolt | 3. | "B" terminal harness |
| 4. | "B" terminal nut | 5. | Alternator connector | 6. | Alternator |
| 7. | Alternator stay | 8. | Alternator mounting bolt (lower) | 9. | Alternator stay mounting bolt |
| 10. | Ground harness | 11. | Alternator mounting bolt (upper) | ||
| : N•m (kg-m, ft-lb) |
