Exploded View With Torque Specifications

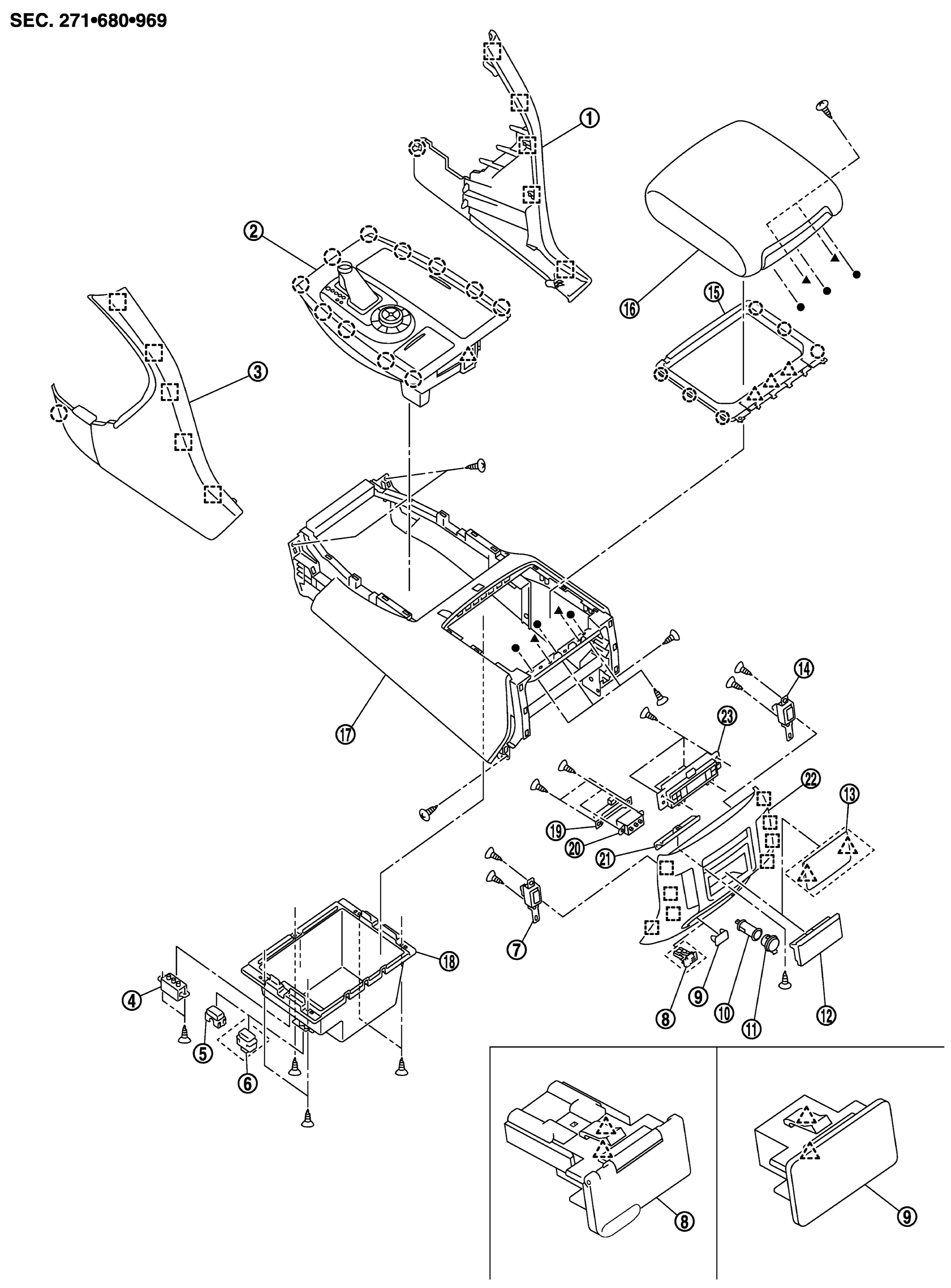

CENTER CONSOLE ASSEMBLY

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Instrument center finisher RH	2.	Console finisher assembly	3.	Instrument center finisher LH
4.	Front auxiliary input jacks	5.	Switch hole mask	6.	Main switch
7.	Second heated seat switch LH	8.	120W unit	9.	Mask
10.	Inner socket	11.	Socket knob	12.	Console ashtray
13.	Mask (without ashtray)	14.	Second heated seat switch RH	15.	Console hinge cover
16.	Console lid assembly	17.	Console body assembly	18.	Console box
19.	Inside key antenna	20.	Rear auxiliary input jacks	21.	Console ashtray bracket
22.	Console rear finisher	23.	Rear A/C control
	: Clip
	: Pawl
	: Metal clip
, : Indicates that the part is connected at points with same symbol in actual vehicle.

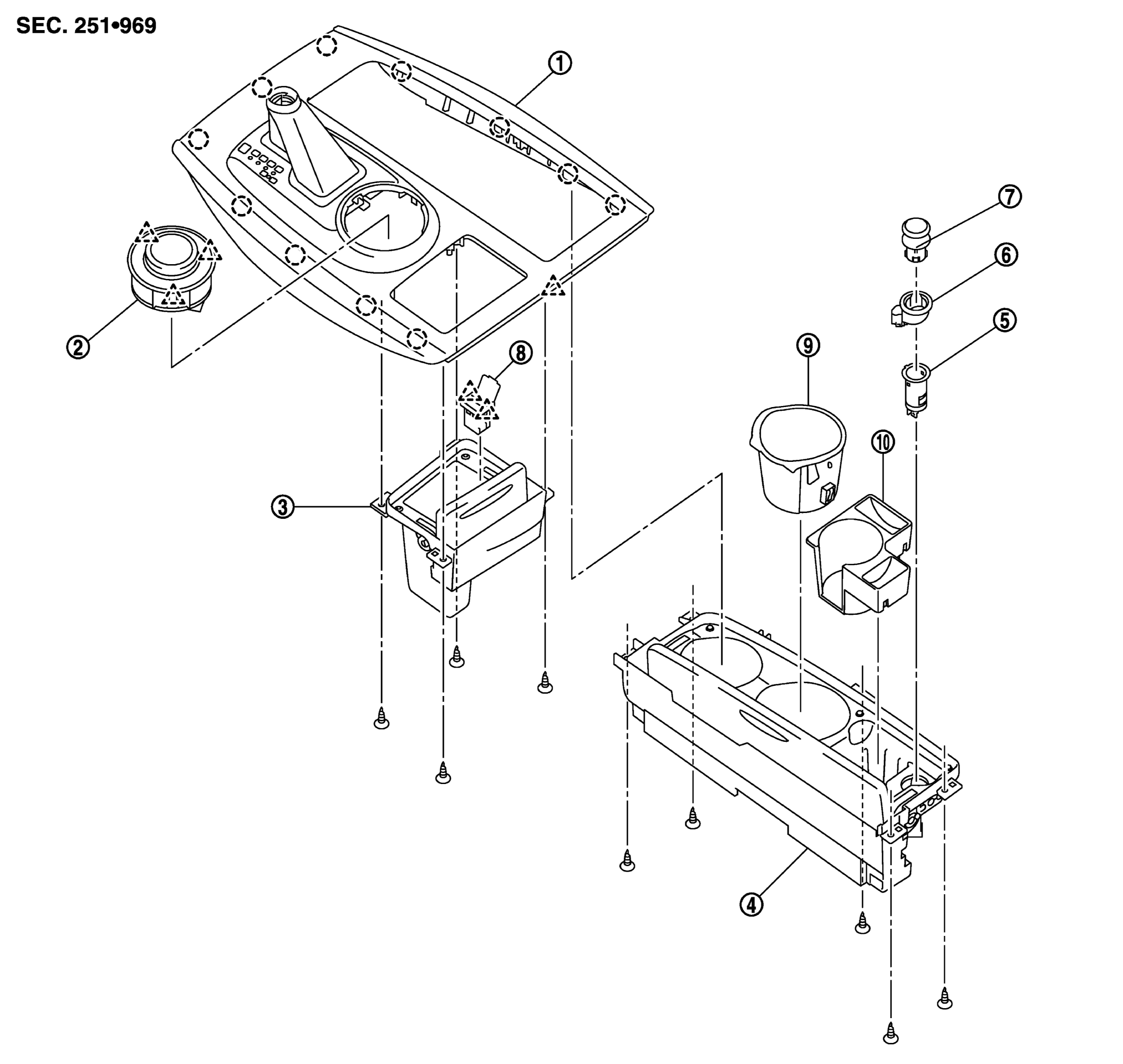

CONSOLE FINISHER ASSEMBLY

Courtesy of NISSAN NORTH AMERICA, INC.

1.	AT control indicator assembly	2.	AWD: AWD switch assembly 2WD: SNOW MODE/TOW MODE/VDC OFF switch assembly	3.	Console pocket assembly
4.	Cup holder assembly	5.	Inner socket	6.	Socket ring
7.	Socket knob	8.	USB connector	9.	Inner case
10.	Coin pocket
	: Clip
	: Pawl
