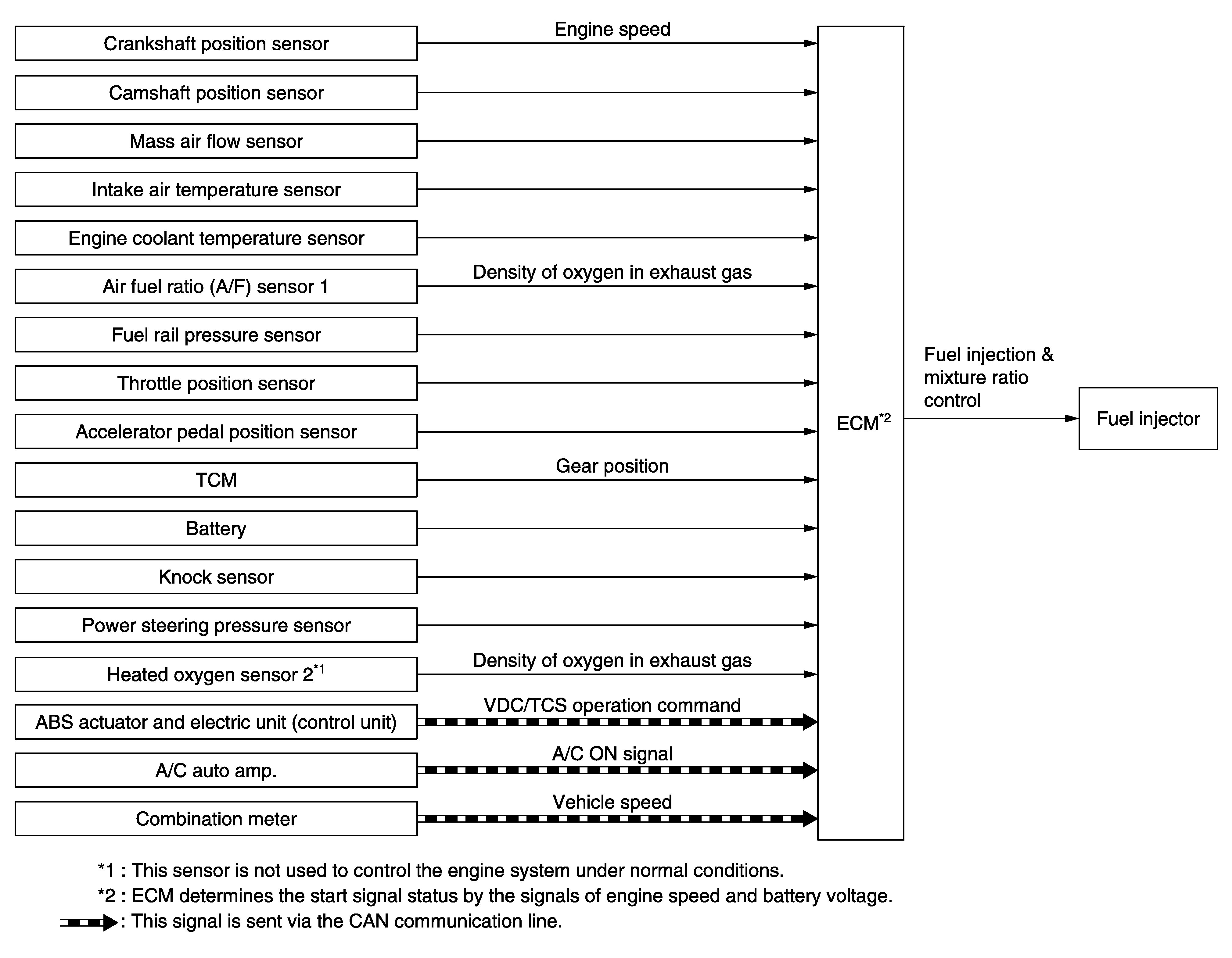

System Diagram

G07019998

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

Both "Engine coolant temperature sensor" and "Engine coolant temperature sensor 1" are used in this information. These indicate the same part.
