Exploded View With Torque Specifications

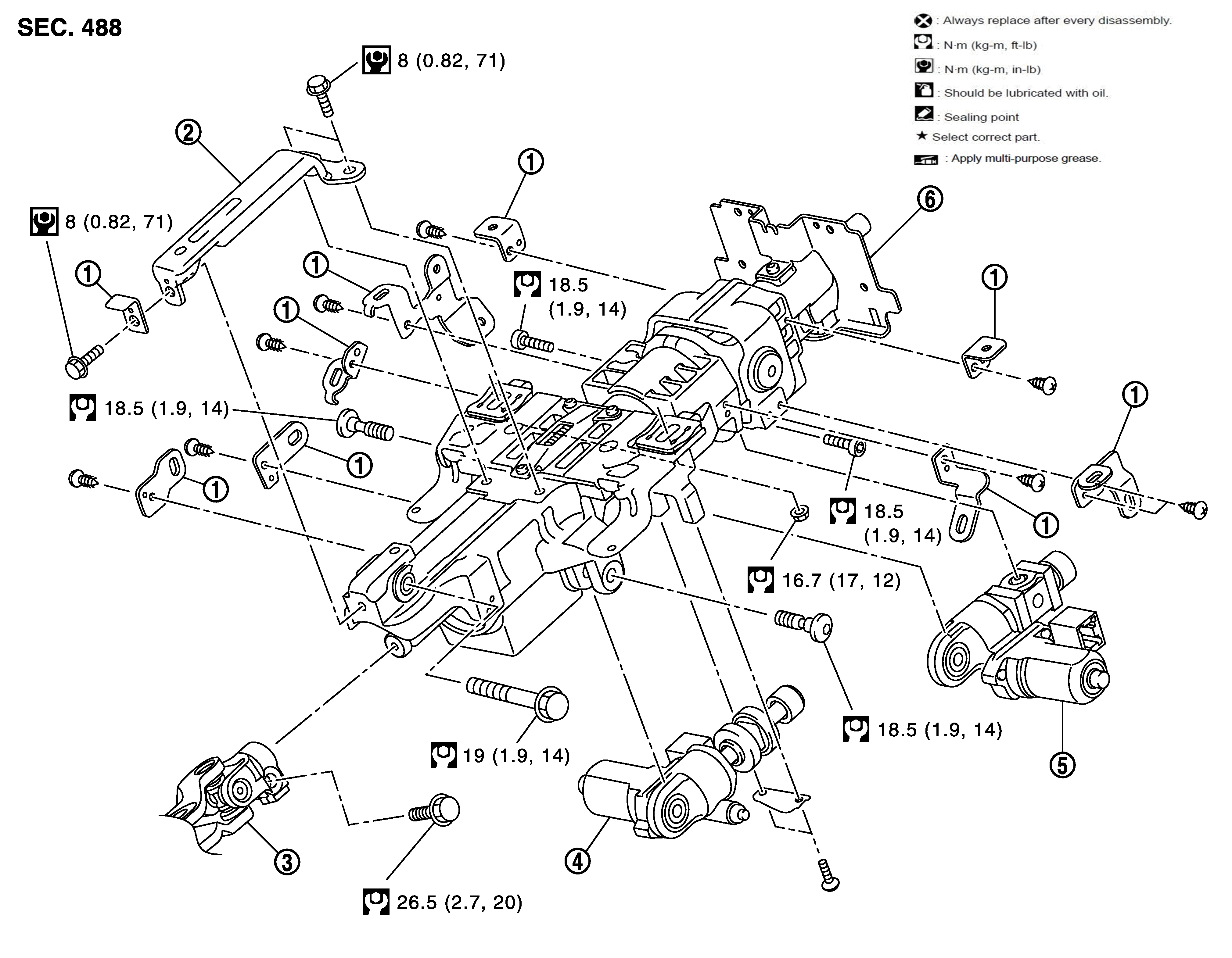

Fig 1: Steering Column Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bracket	2.	Steering column mounting bracket	3.	Upper joint
4.	Telescopic motor	5.	Tilt motor	6.	Steering column assembly
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
