Power Window Control System
>>
System Description
>>
Component Parts
>>

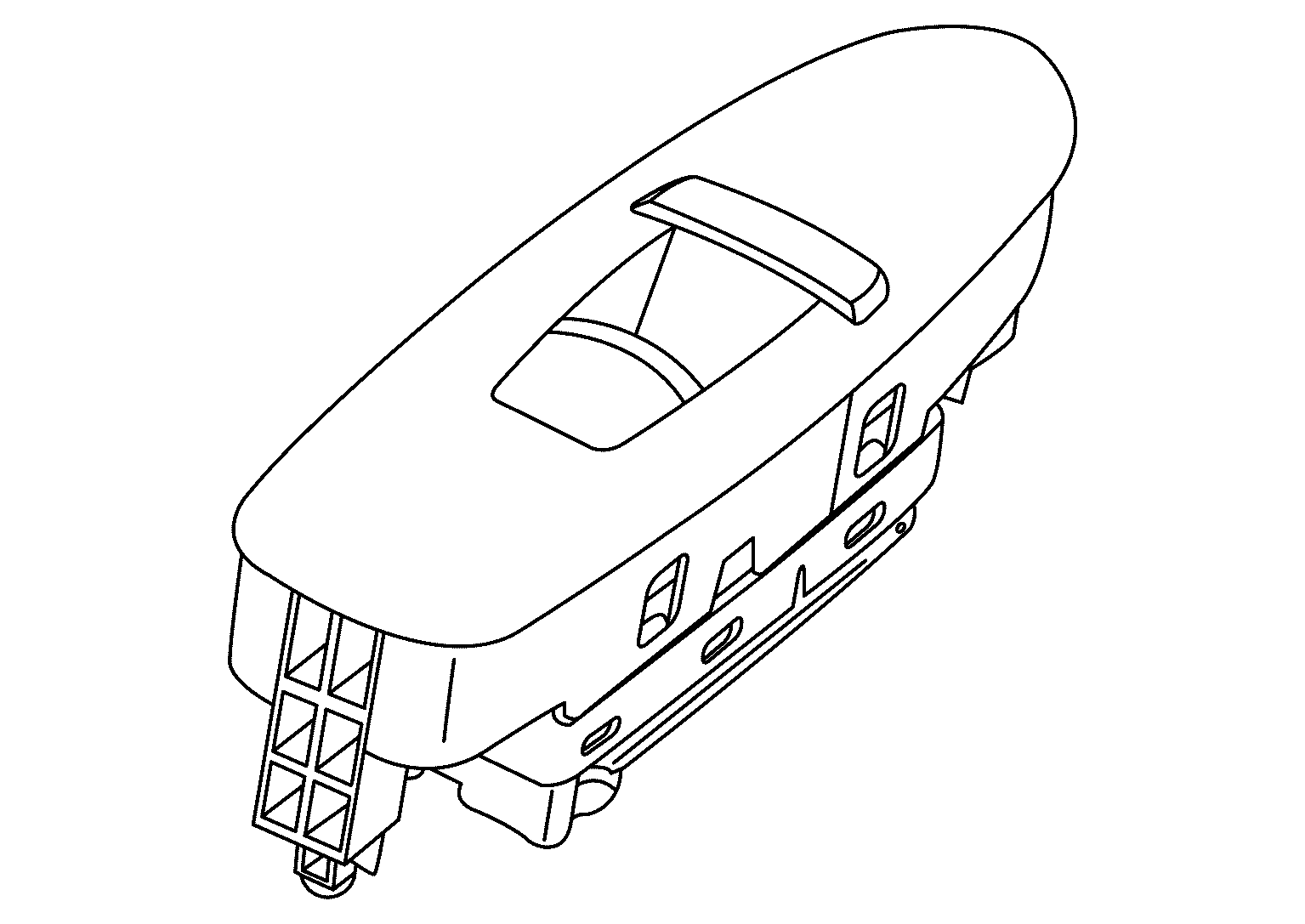

Power Window Sub-Switch
Power Window Sub-Switch
Integrates the module.
Power Window Sub-Switch transmits AUTO UP/DOWN signal to Power Window Motor (Passenger Side).
Courtesy of NISSAN NORTH AMERICA, INC.
Receives AUTO UP/DOWN signal from BCM, and then transmits to Power Window Motor (Passenger Side).
Receives encoder pulse signal, and then controls anti - pinch system.
Courtesy of NISSAN NORTH AMERICA, INC.
