System Description
>>
Component Parts
>>
Drive Mode Select Switch

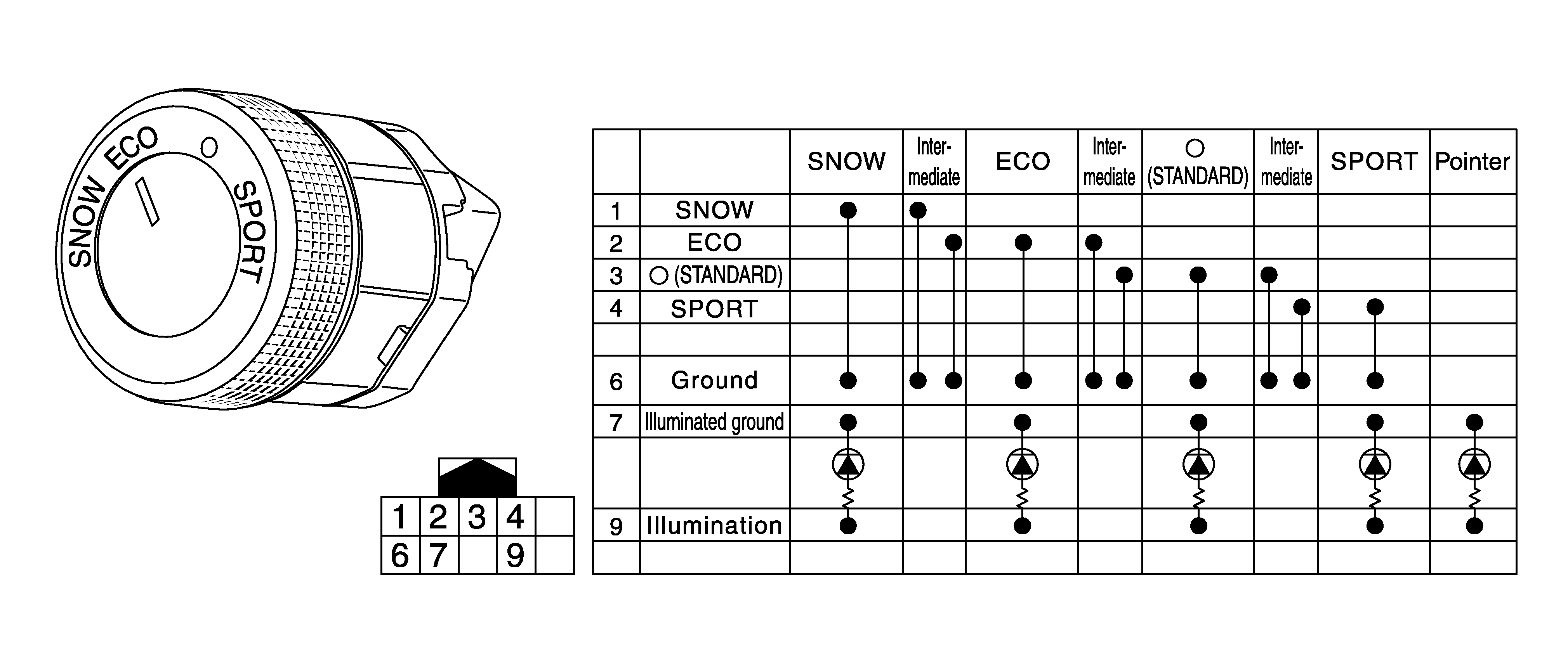

Drive Mode Select Switch
Courtesy of NISSAN NORTH AMERICA, INC.
4-contact rotary type drive mode select switch is set on the upper part of the center console.
Being connected to A/C auto amp., this switch allows to select STANDARD, SPORT, ECO, or SNOW mode.
Courtesy of NISSAN NORTH AMERICA, INC.
