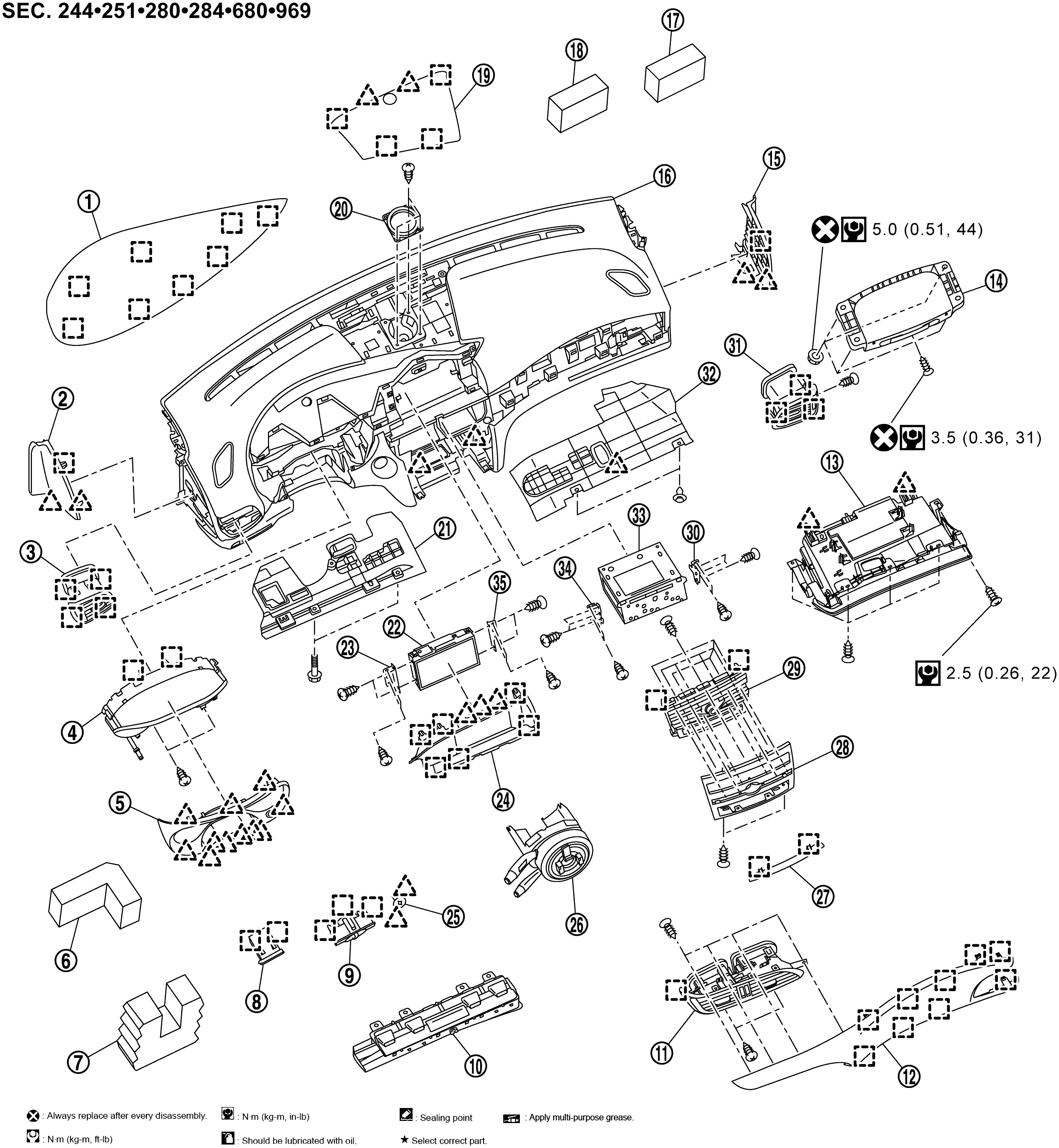

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Instrument pad A		Instrument mask LH		Side ventilator grille LH
	Combination meter		Cluster lid A		Insulator
	Insulator		Electric parking brake switch		Rotary light switch
	Knee air bag module		Center ventilator grille		Instrument pad C
	Glove box assembly		Passenger air bag module		Instrument mask RH
	Instrument panel assembly		Insulator		Insulator
	Center squawker grill		Center squawker		Instrument lower cover LH
	Display control unit		Display control unit bracket LH		Cluster lid D
	Ignition switch mask		Steering column control module		Instrument finisher E
	Cluster lid C		Preset switch & hazard switch		AV control unit bracket RH
	Side ventilator grille RH		Instrument lower cover RH		AV control unit
	AV control unit bracket LH		Display control unit bracket RH
	: Pawl
	: Metal clip
	: Always replace after every disassembly.
	: N•m (kg-m, in-lb)
