Mode 6

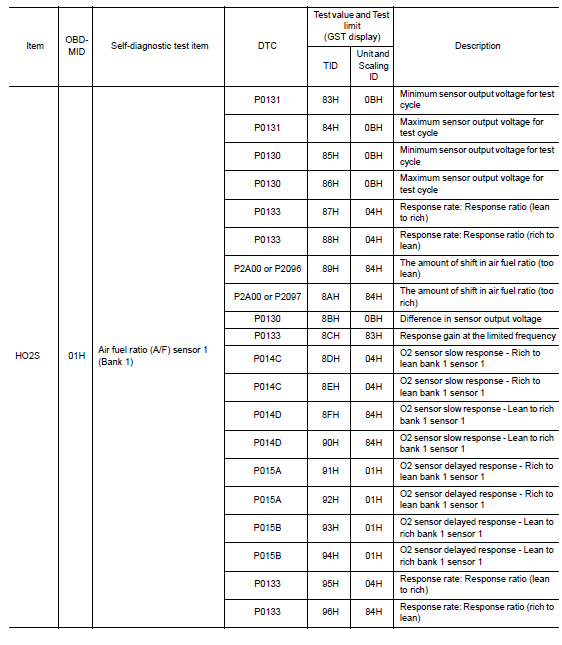

Fig 1: Mode $06 Data (1 Of 7)

G00574004

Courtesy of NISSAN MOTOR CO., U.S.A.

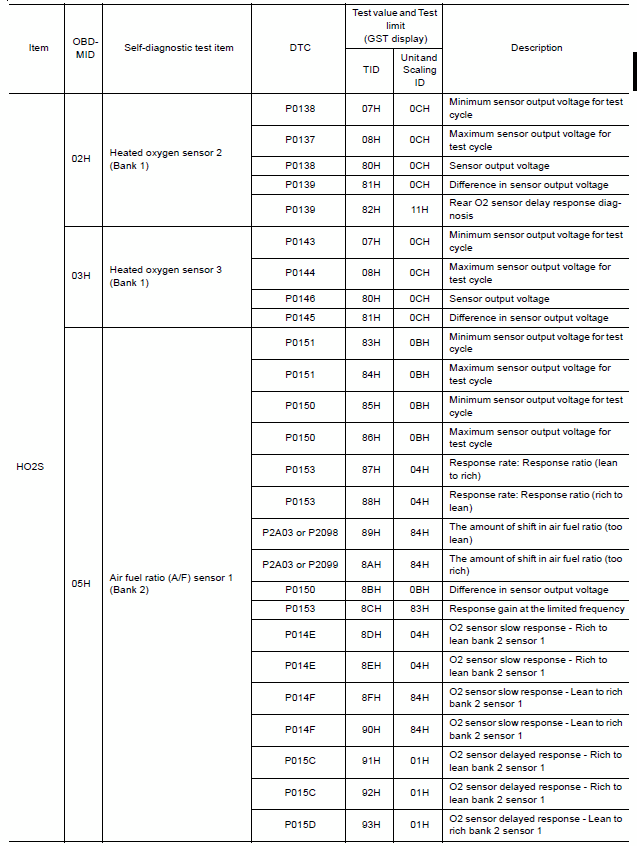

Fig 2: Mode $06 Data (2 Of 7)

G00574029

Courtesy of NISSAN MOTOR CO., U.S.A.

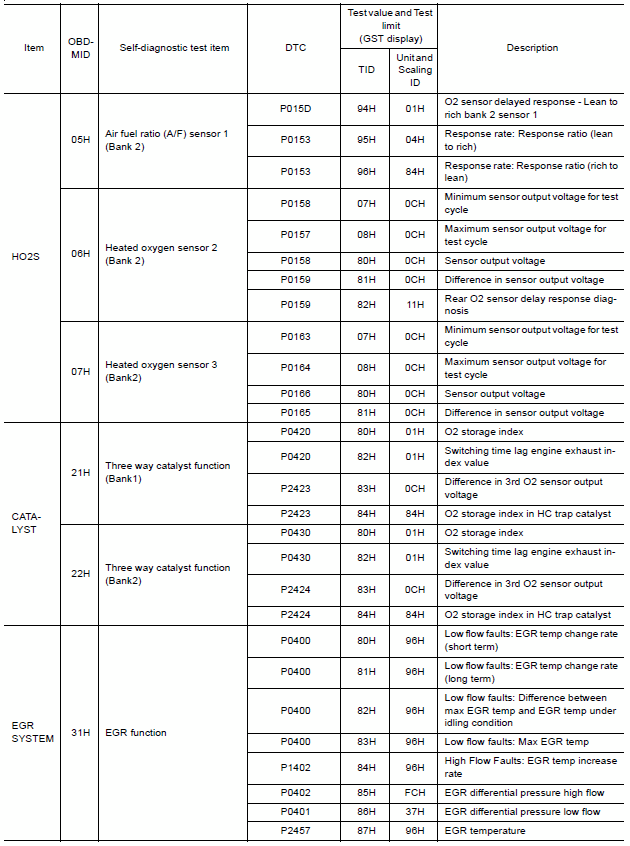

Fig 3: Mode $06 Data (3 Of 7)

G00574036

Courtesy of NISSAN MOTOR CO., U.S.A.

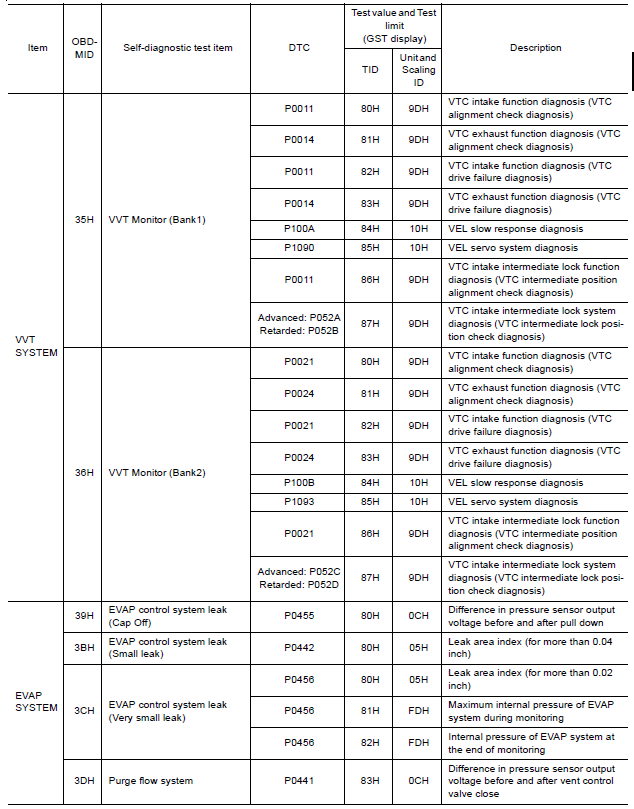

Fig 4: Mode $06 Data (4 Of 7)

G00574031

Courtesy of NISSAN MOTOR CO., U.S.A.

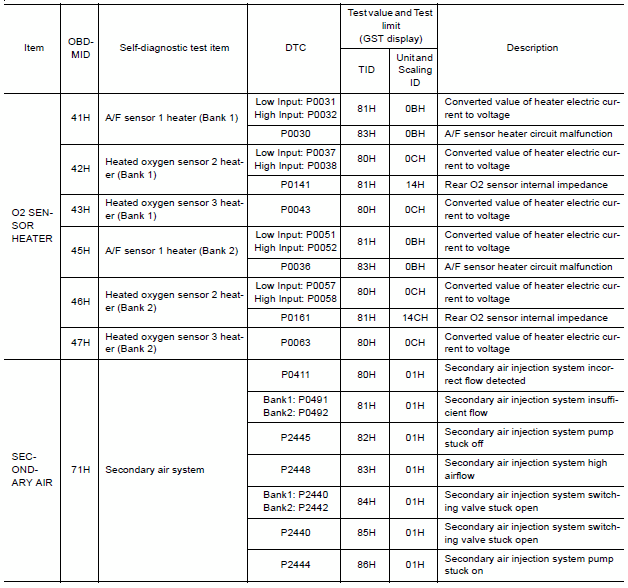

Fig 5: Mode $06 Data (5 Of 7)

G00574037

Courtesy of NISSAN MOTOR CO., U.S.A.

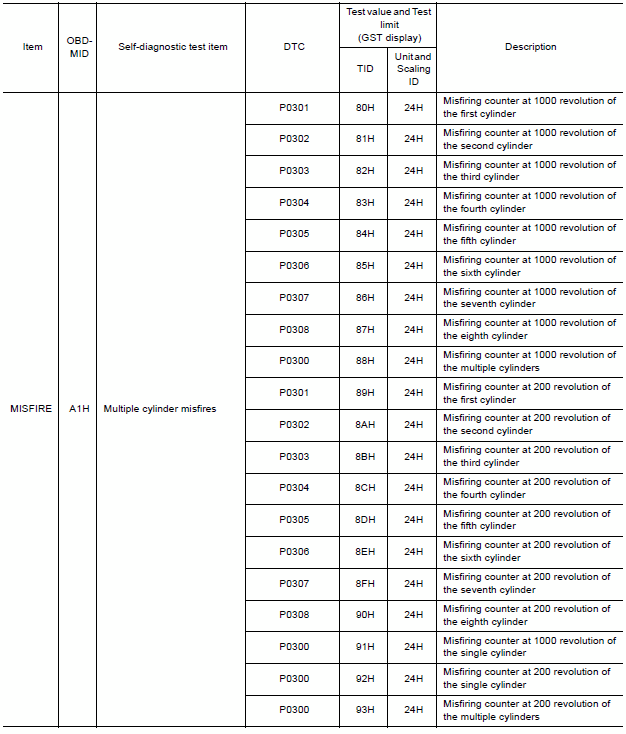

Fig 6: Mode $06 Data (6 Of 7)

G00574033

Courtesy of NISSAN MOTOR CO., U.S.A.

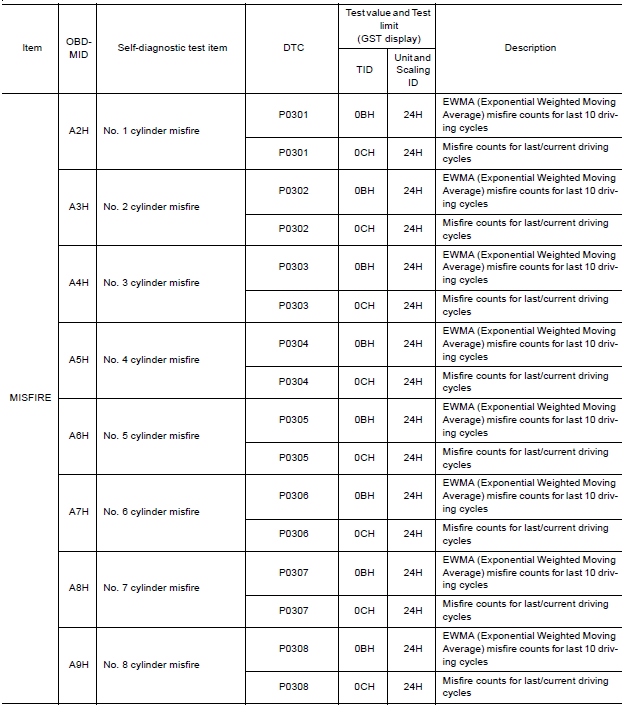

Fig 7: Mode $06 Data (7 Of 7)

G00574034

Courtesy of NISSAN MOTOR CO., U.S.A.
