Circuit Diagram

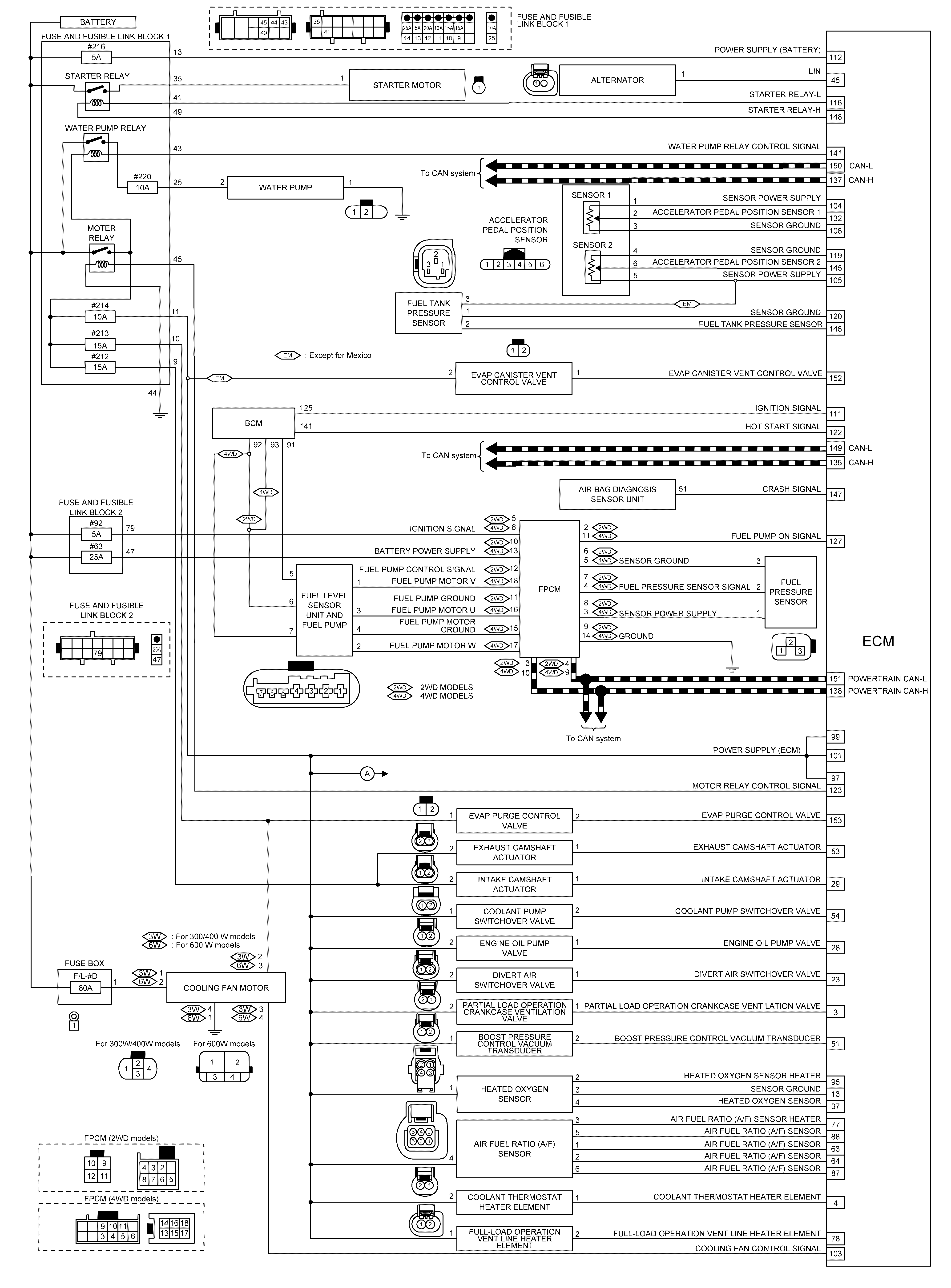

GNSJSBIB0427GB-427

Courtesy of NISSAN NORTH AMERICA, INC.

*: Cooling fun motor of 600 W models is not applicable.

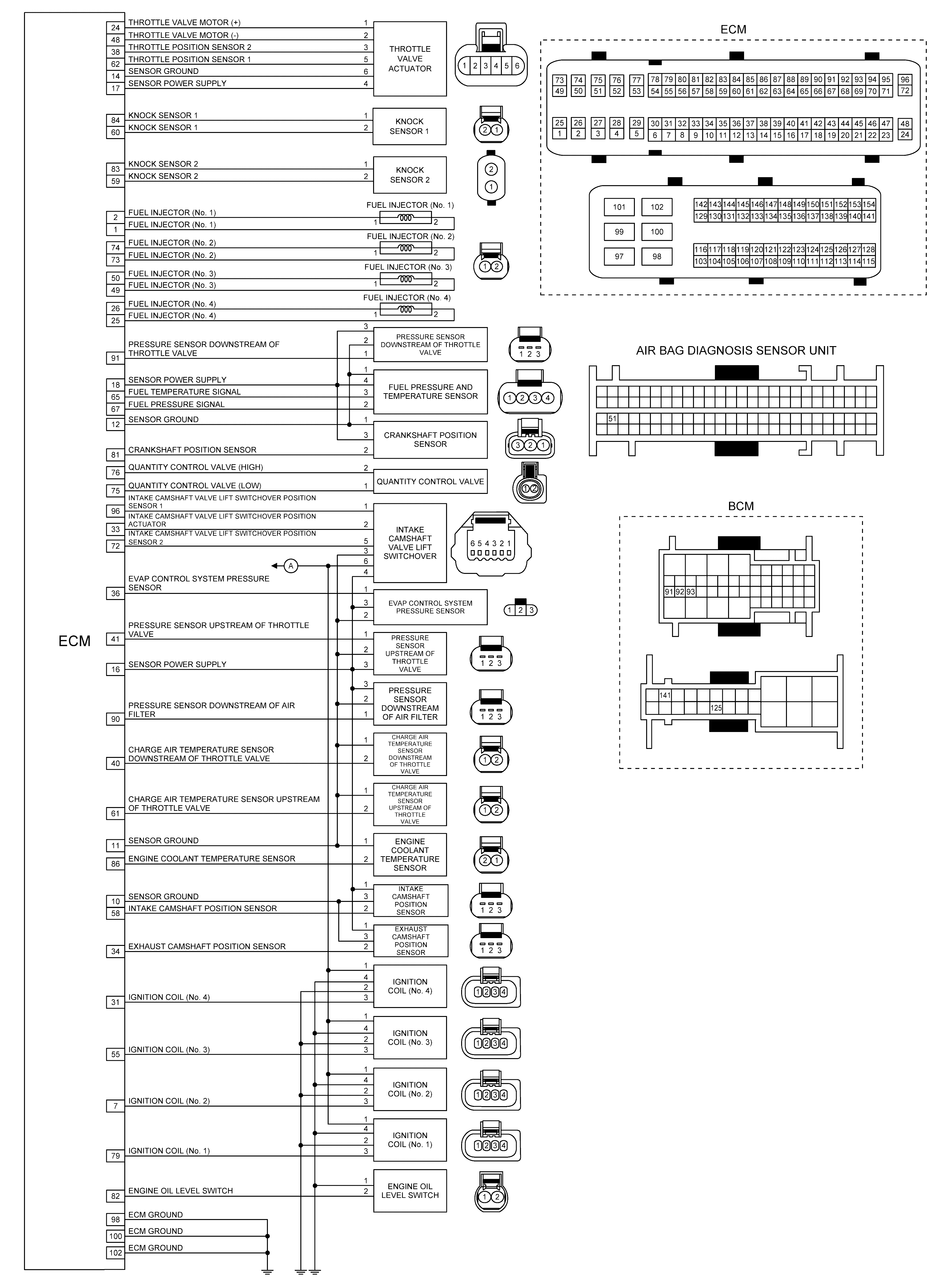

GNSJSBIB0508GB-508

Courtesy of NISSAN NORTH AMERICA, INC.
