Precaution
>>
Precautions
>>
Precaution For Harness Repair
Precaution For Harness Repair

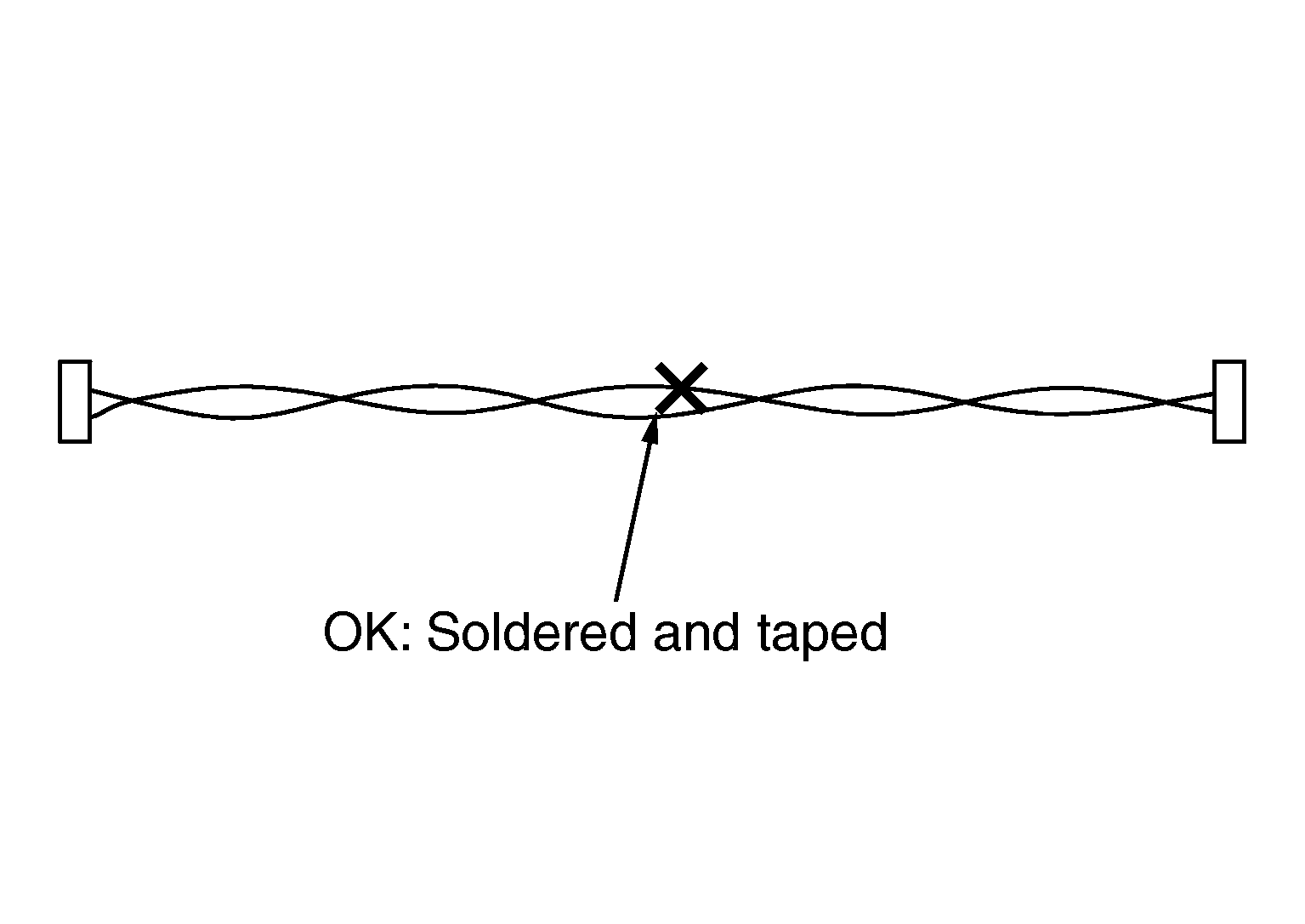

Solder the repair part, and wrap it with tape. [Twisted wire fray must be 110 mm (4.33 in) or less.]
Courtesy of NISSAN NORTH AMERICA, INC.

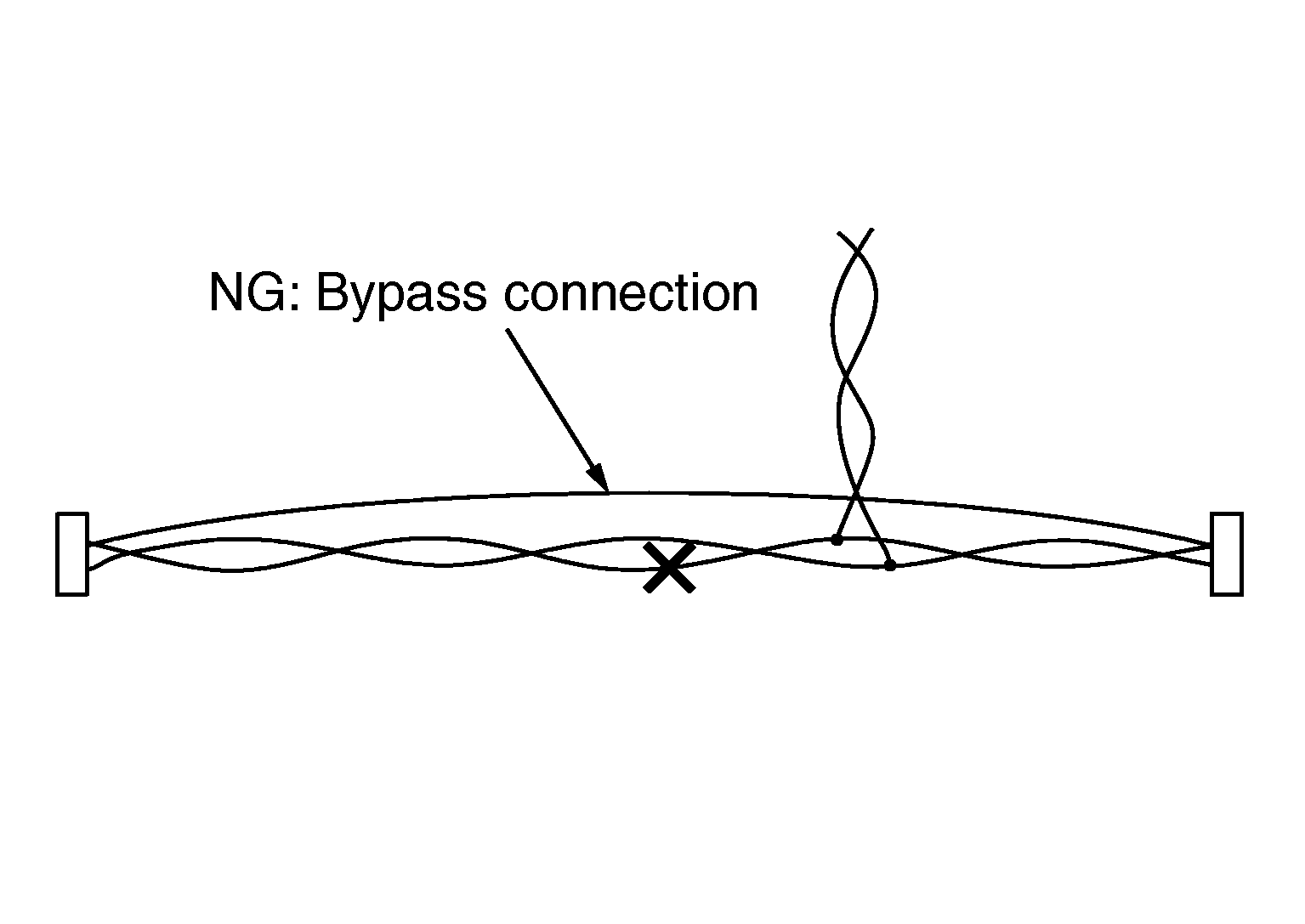

Never bypass the repair point with wire. (If it is bypassed, the turnout point cannot be separated and the twisted wire characteristics are lost.)
Courtesy of NISSAN NORTH AMERICA, INC.
