Exploded View

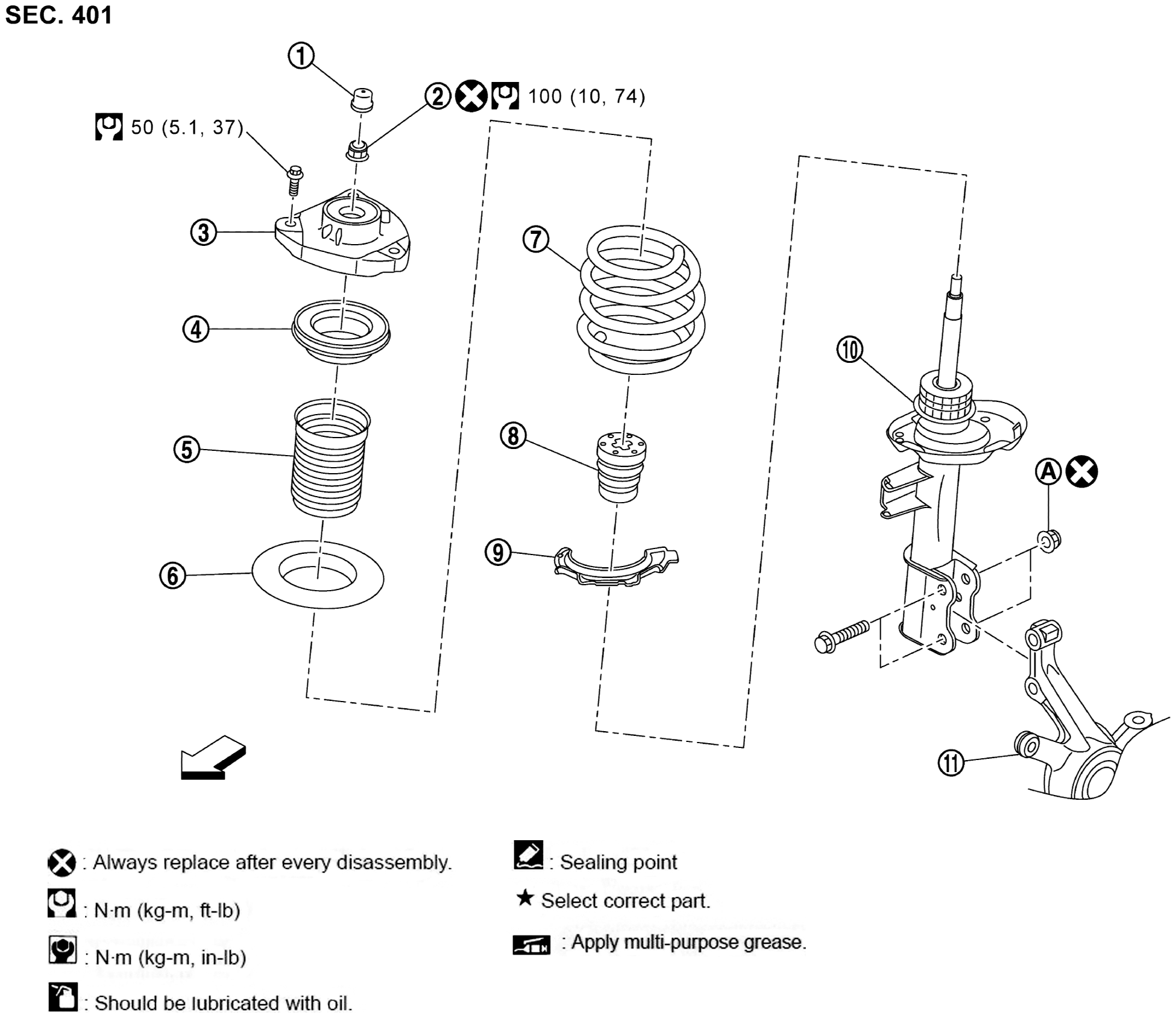

Fig 1: Front Coil Spring And Strut With Torque Specifications
GNSJSEIA1408GB-408Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Cap WHITE-2 Piston rod lock nut WHITE-3 Mounting insulator
WHITE-4 Mounting bearing WHITE-5 Dust boot WHITE-6 Rubber seat
WHITE-7 Coil spring WHITE-8 Bound bumper WHITE-9 Lower rubber seat
WHITE-10 Strut WHITE-11 Steering knuckle
MARU-A-W : Tightening must be done following the installation procedure. Refer to REMOVAL AND INSTALLATION .
ARROW : Vehicle front
DISAS : Always replace after every disassembly.
BOLT : N•m (kg - m, ft - lb)
