Exploded View With Torque Specifications

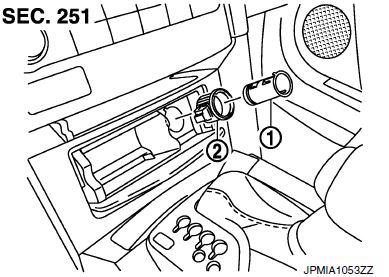

Fig 1: Exploded View Of Front Power Socket
G00580861Courtesy of NISSAN NORTH AMERICA, INC.
1 : Inner Socket
2 : Ring
