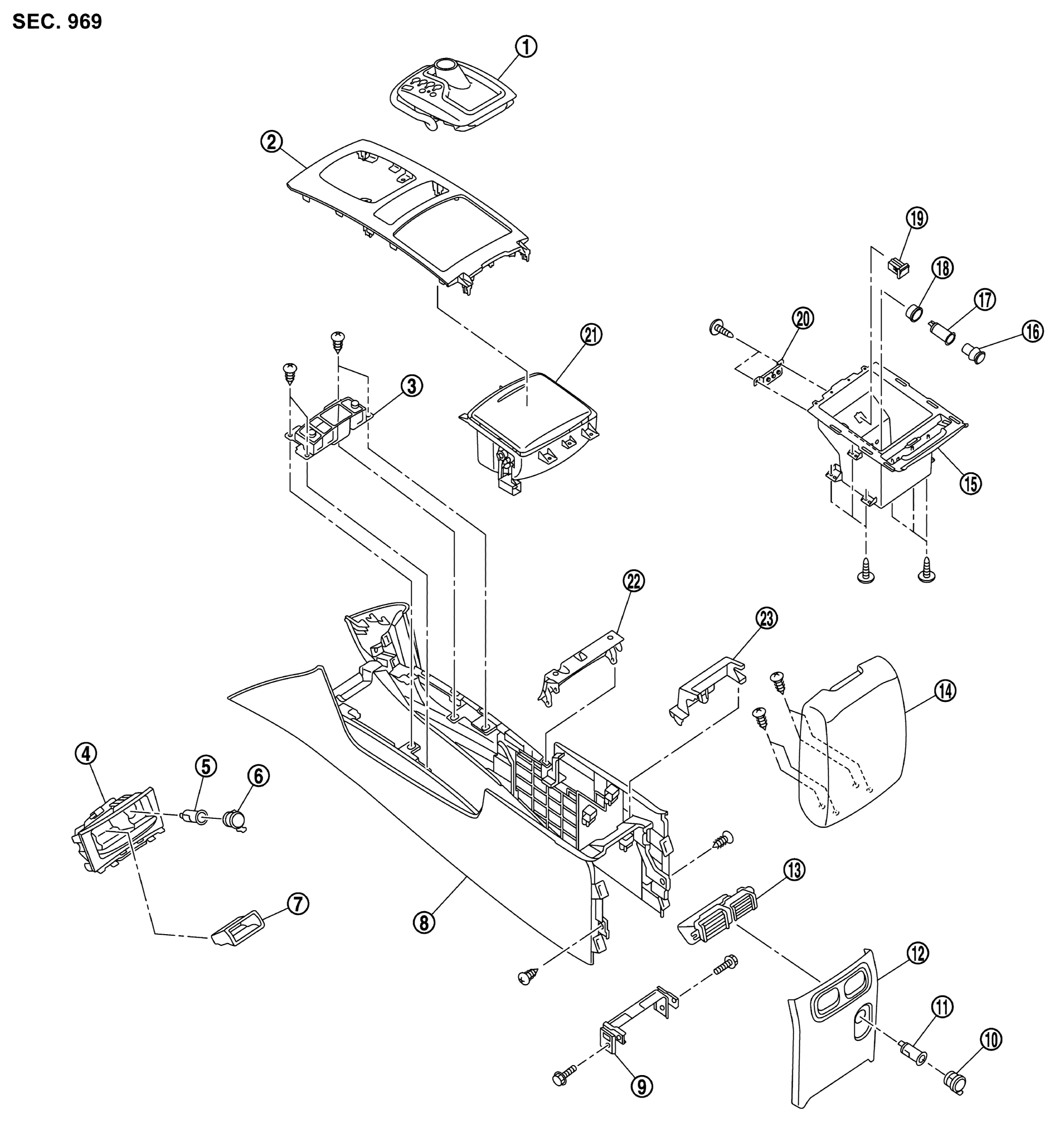

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Indicator assembly	2.	Console finisher assembly	3.	Console switch finisher
4.	Console pocket assembly	5.	Socket inner case	6.	Socket knob
7.	Pocket	8.	Center console assembly	9.	Console bracket
10.	Socket knob	11.	Socket inner case	12.	Console rear finisher
13.	Rear ventilator grille	14.	Console lid assembly	15.	Console box assembly
16.	Socket knob	17.	Socket inner case	18.	Socket ring
19.	USB connector	20.	Mask	21.	Cup holder assembly
22.	Console upper finisher	23.	Console hinge mask
