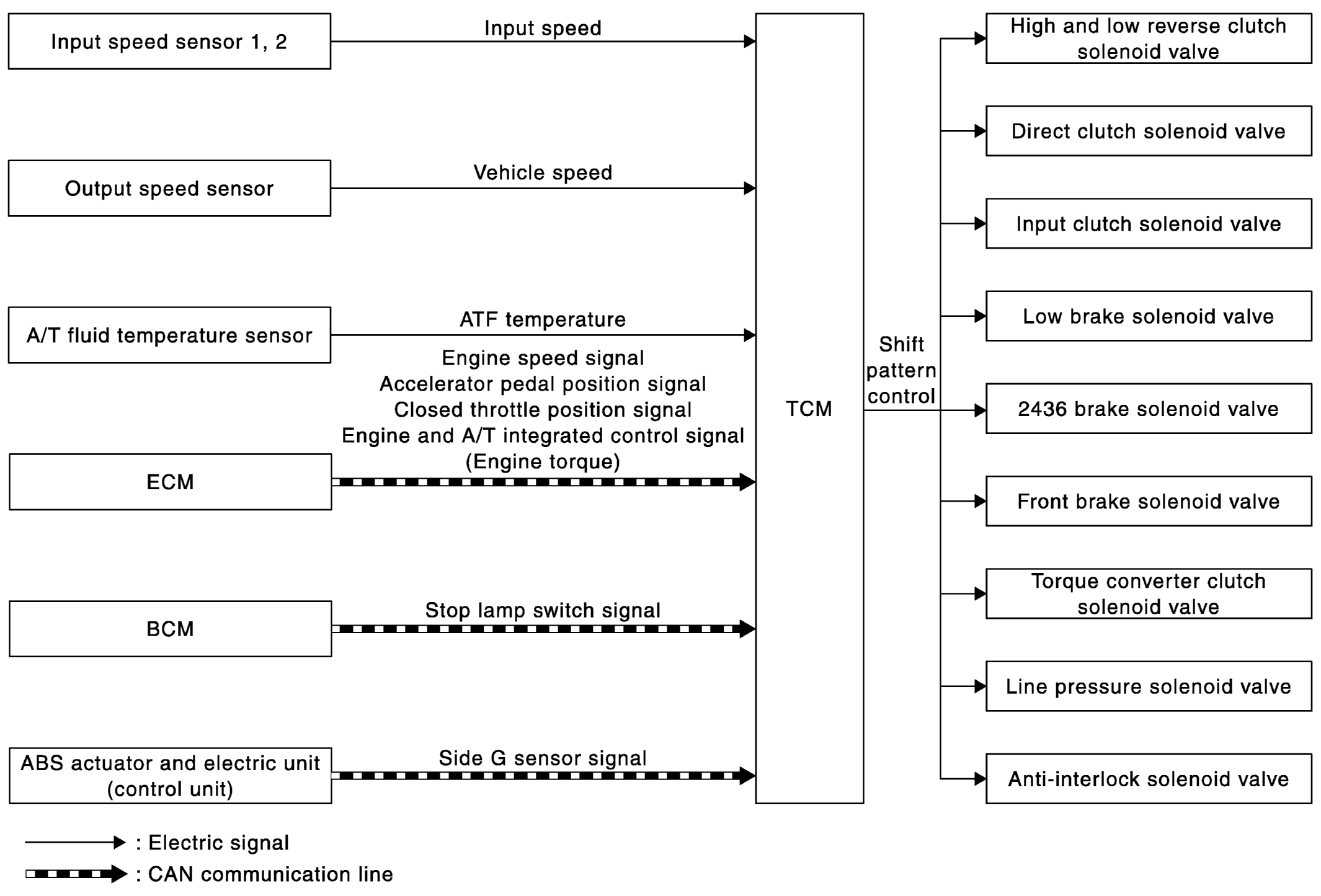

Home >> Infiniti >> 2017 >> QX70 AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (Basic Inspection) >> System Description >> Shift Pattern Control >> ASC (Adaptive Shift Control) >> System Diagram
