Variable Operation

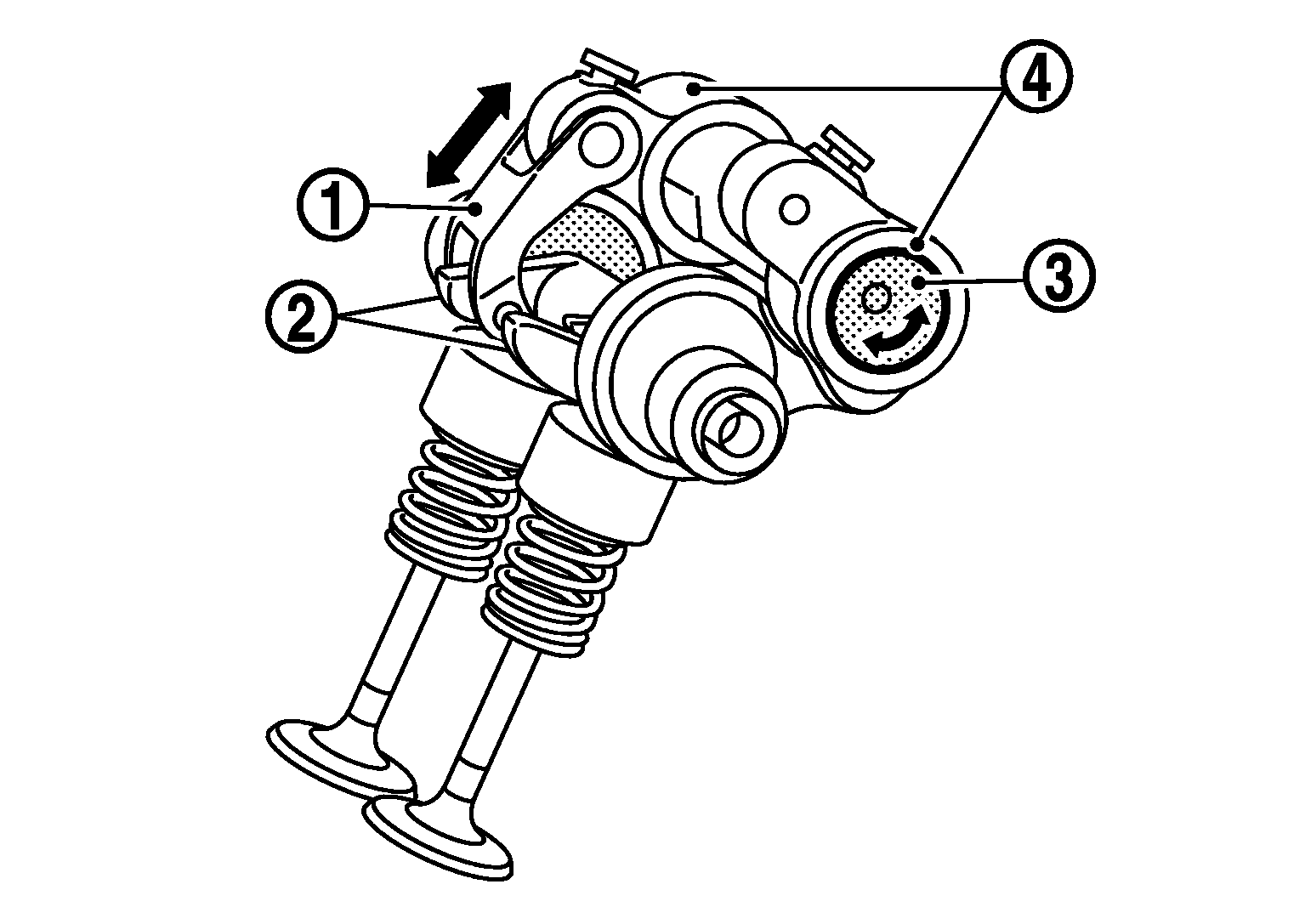

VVEL control module controls the rotation of the control shaft using the VVEL actuator motor assembly and changes the movement of the output cam by shifting the link supporting point. As a result, valve lift changes continuously to improve engine output and response.

Courtesy of NISSAN NORTH AMERICA, INC.
