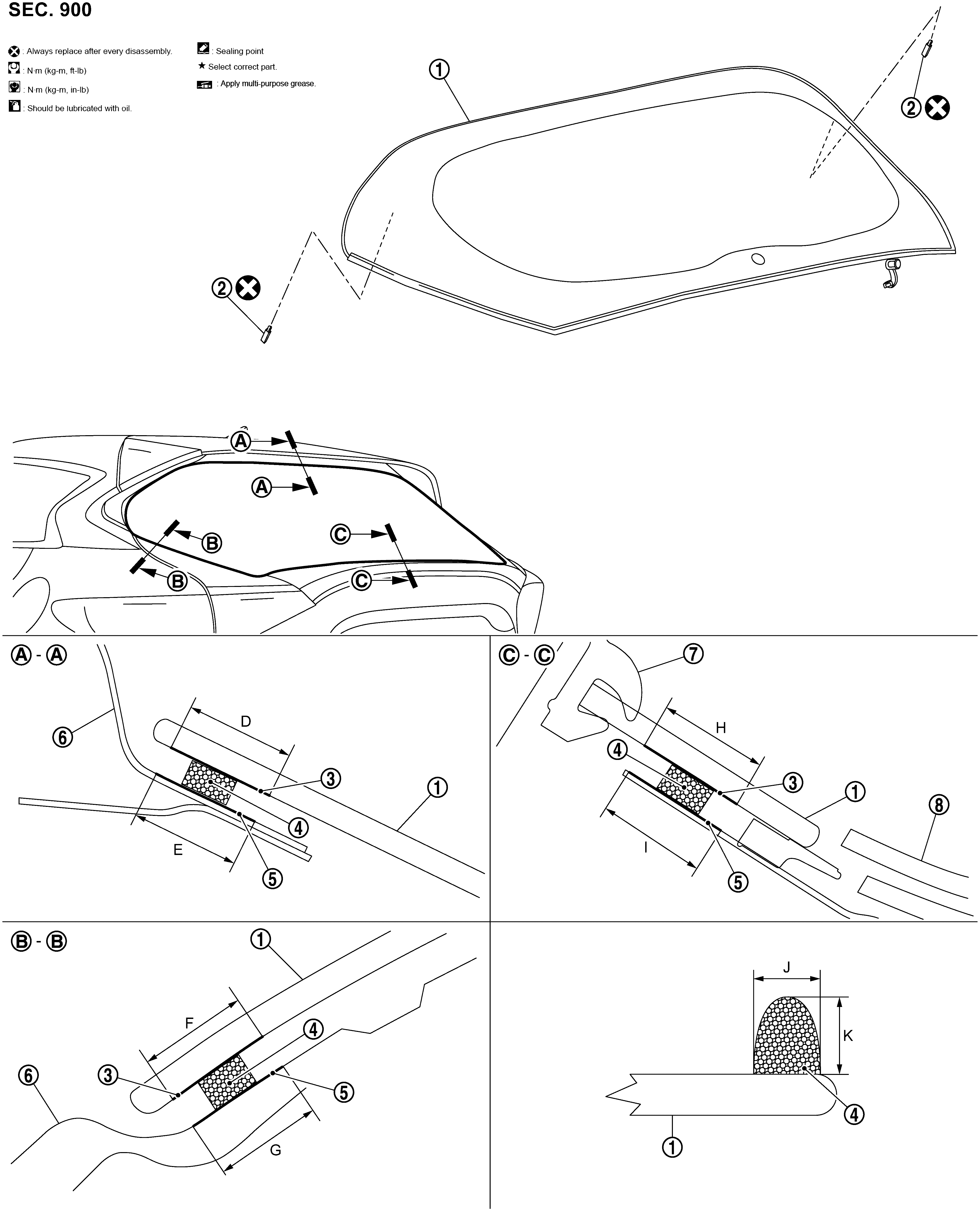

Exploded View
|
|
Back door window glass |
|
Back door window glass clip |
|
Glass primer |
|
|
Adhesive |
|
Painted surface primer |
|
Back door outer panel |
|
|
Pivot seal |
|
Back door finisher |
||
|
|
: Always replace after every disassembly. |
||||
Unit: mm (in)
|
Portion |
Primer range |
Adhesive range |
|||
|
J |
K |
||||
|
Back door window glass - Back door outer panel |
|
D |
23.5 (0.93) |
7.0 (0.276) |
5.0 (0.197) |
|
E |
22.5 (0.89) |
-- |
-- |
||
|
|
F |
23.5 (0.93) |
7.0 (0.276) |
5.0 (0.197) |
|
|
G |
22.5 (0.89) |
-- |
-- |
||
|
|
H |
17.0 (0.67) |
7.0 (0.276) |
5.0 (0.197) |
|
|
I |
-- |
-- |
|||
