Removal and Installation: Installation

Install in the reverse order of removal.

CAUTION: Do not operate the red safety catches in steering column control module. Irreparable damage might be caused to the horn and air bag spiral cable contact.

NOTE:

When steering column control module is in the correct installation position, the assembly indicator

is retracted.

Courtesy of NISSAN NORTH AMERICA, INC.

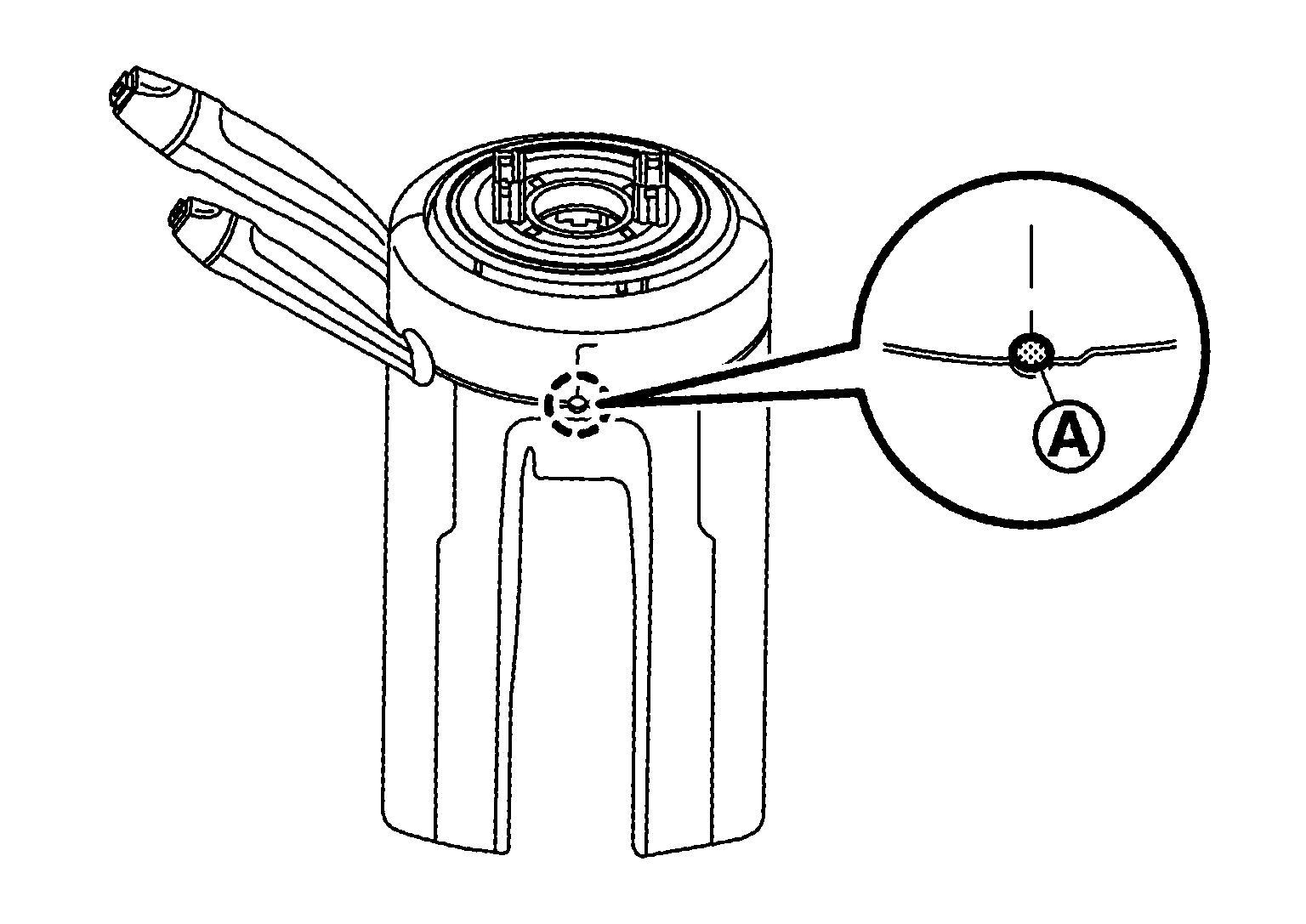

When installing a new steering column control module the transportation lock

must be broken off once mounted.

Courtesy of NISSAN NORTH AMERICA, INC.
