Removal and Installation: Removal

  1. Remove steering wheel. Refer to Removal and Installation .
  2. Remove steering column cover. Refer to Removal and Installation .
  3. Pull out steering column control module.
  4. Disconnect harness connector SYMBOL from steering column control module SYMBOL .

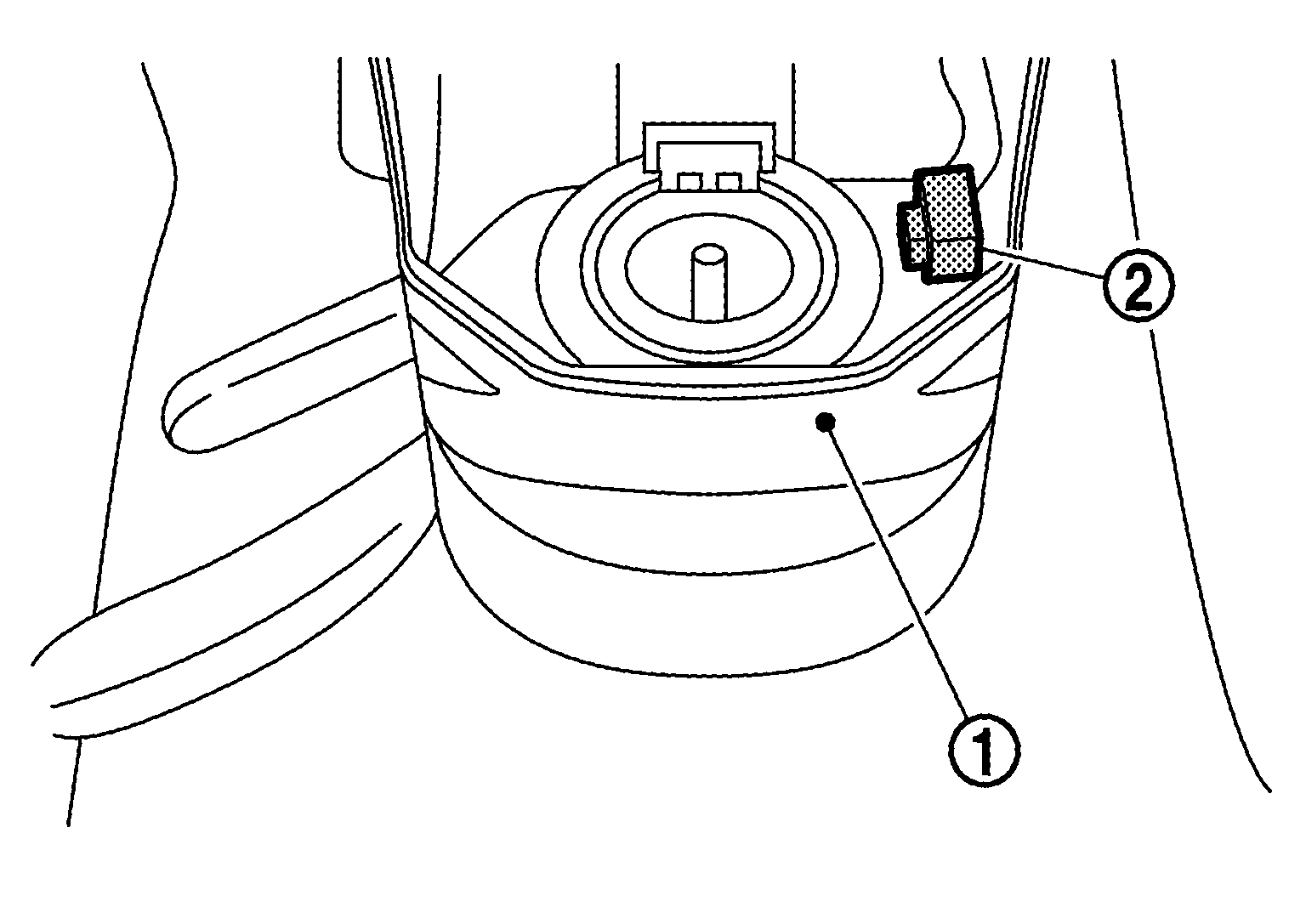

    GNSJMMIA2239Z-239Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove steering column control module.

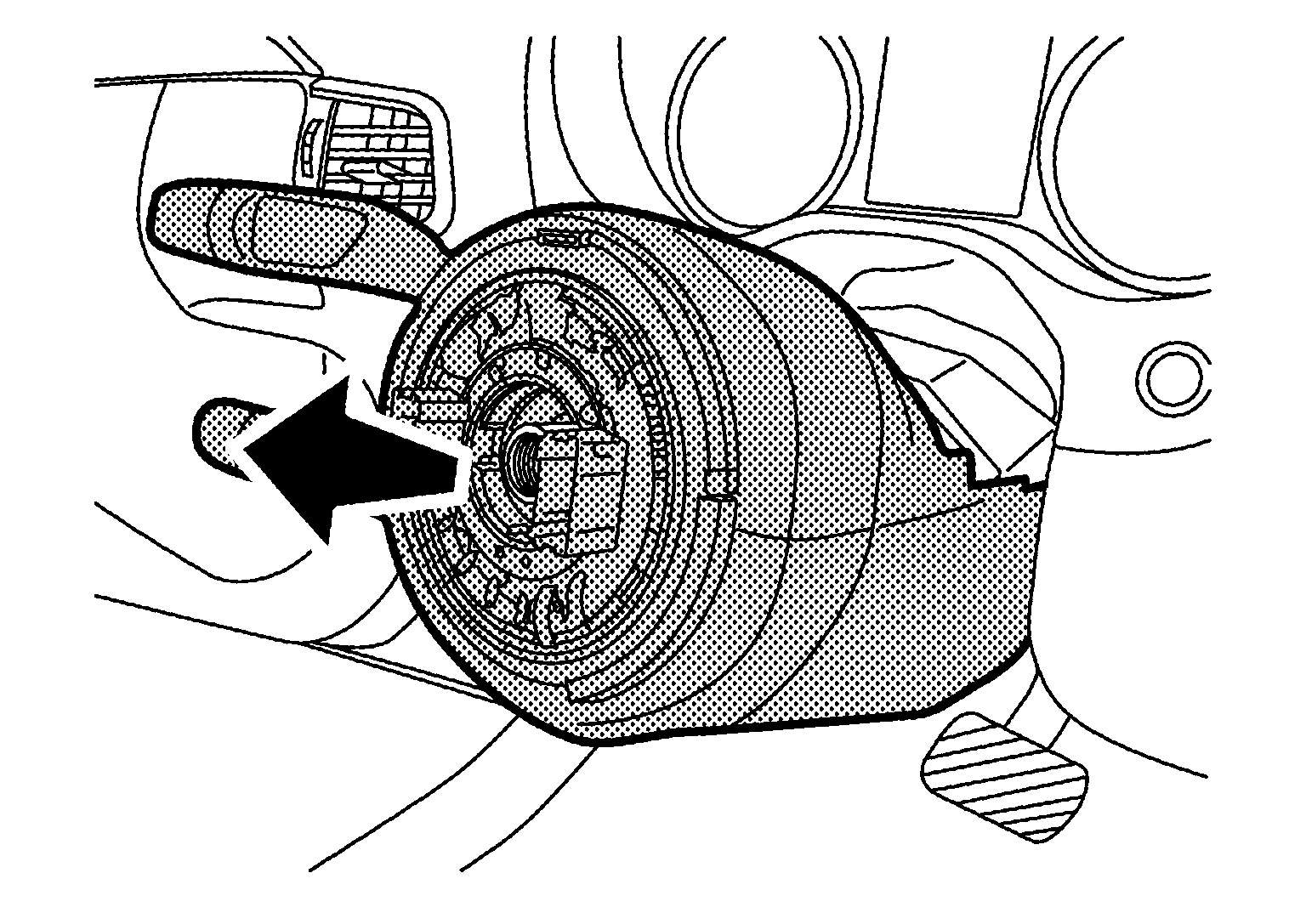

GNSJMHIA3391Z-391Courtesy of NISSAN NORTH AMERICA, INC.
