Exploded View

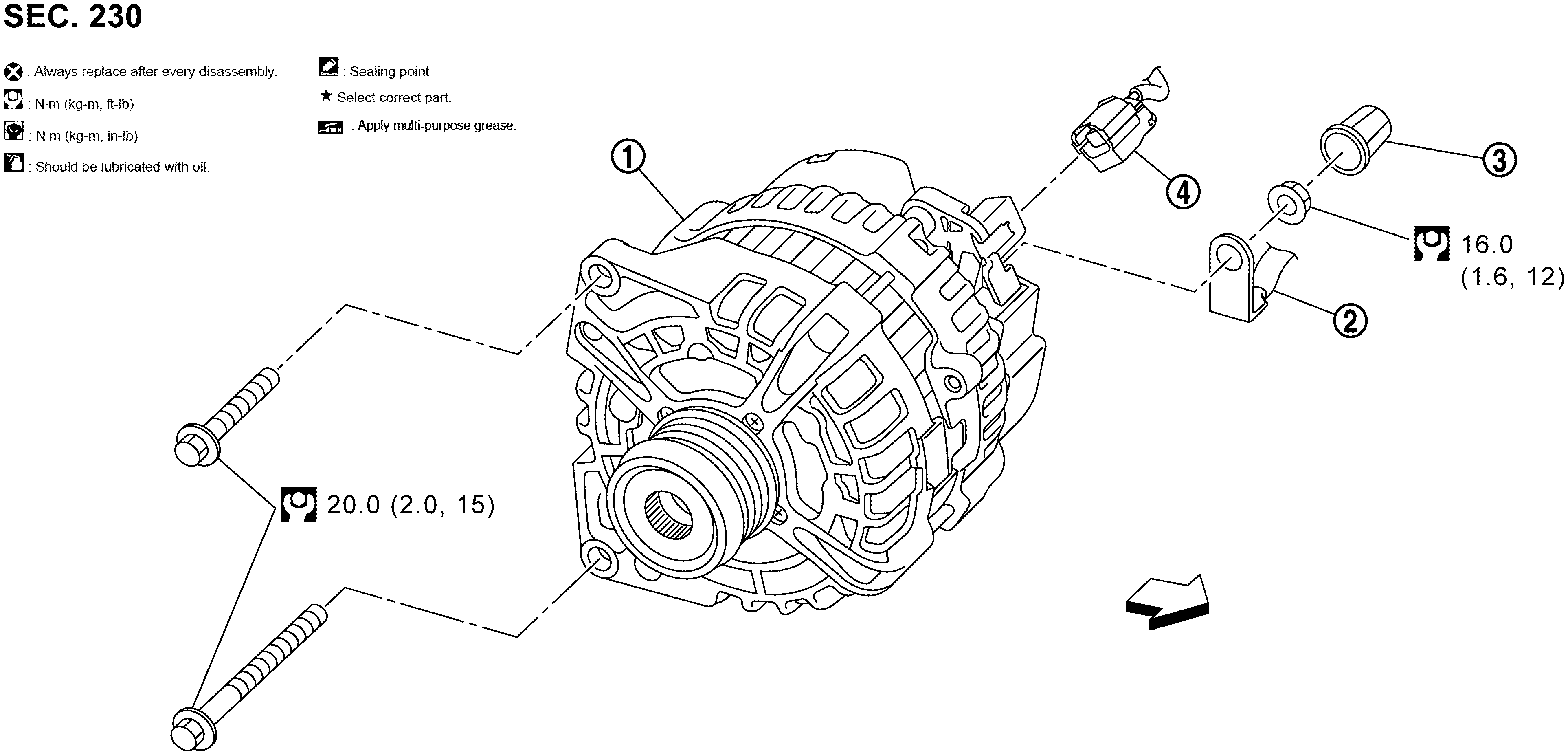

Fig 1: Alternator Replacement Components With Torque Specifications
GNSJMMIA2162GB-162SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Alternator

SYMBOL

"B" terminal harness

SYMBOL

Terminal cap

SYMBOL

Alternator connector

SYMBOL

: Vehicle front

SYMBOL

: N.m (kg-m, ft-lb)
