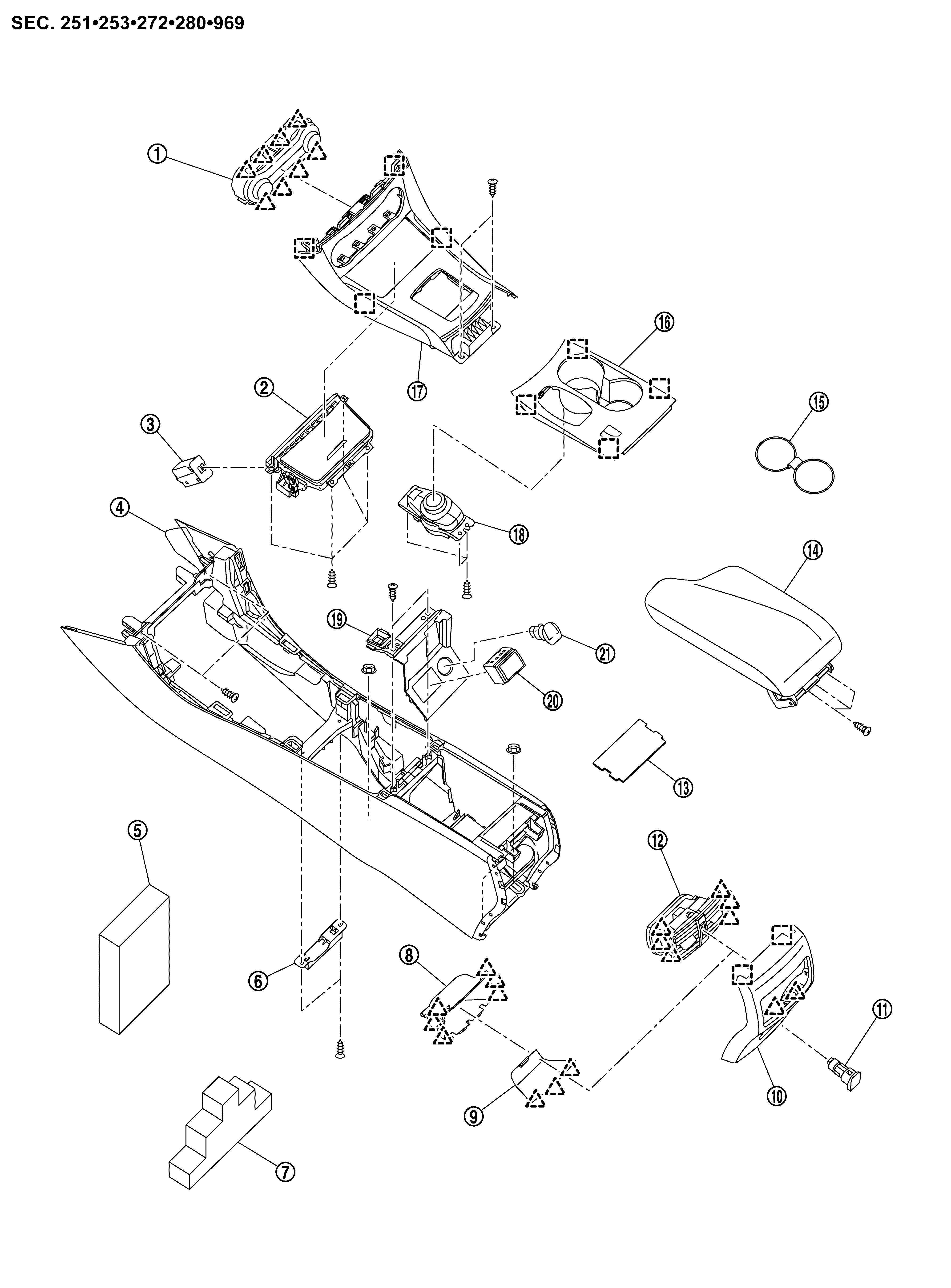

Exploded View
|
|
A/C control |
|
Center console pocket |
|
USB connector |
|
|
Center console assembly |
|
Insulator |
|
Inside key antenna |
|
|
Insulator |
|
Center console tray *1 |
|
Center console tray mat |
|
|
Center console rear finisher |
|
Rear power socket |
|
Rear ventilator grille *2 |
|
|
Center console box mat |
|
Center console lid |
|
Cup holder inner |
|
|
Center console center finisher |
|
Center console front finisher |
|
Multifunction switch |
|
|
Center console mask |
|
SD card slot |
|
Front power socket |
|
|
: Pawl |
||||
|
|
: Metal clip |
||||
* 1 : Without rear ventilator models
* 2 : With rear ventilator models
