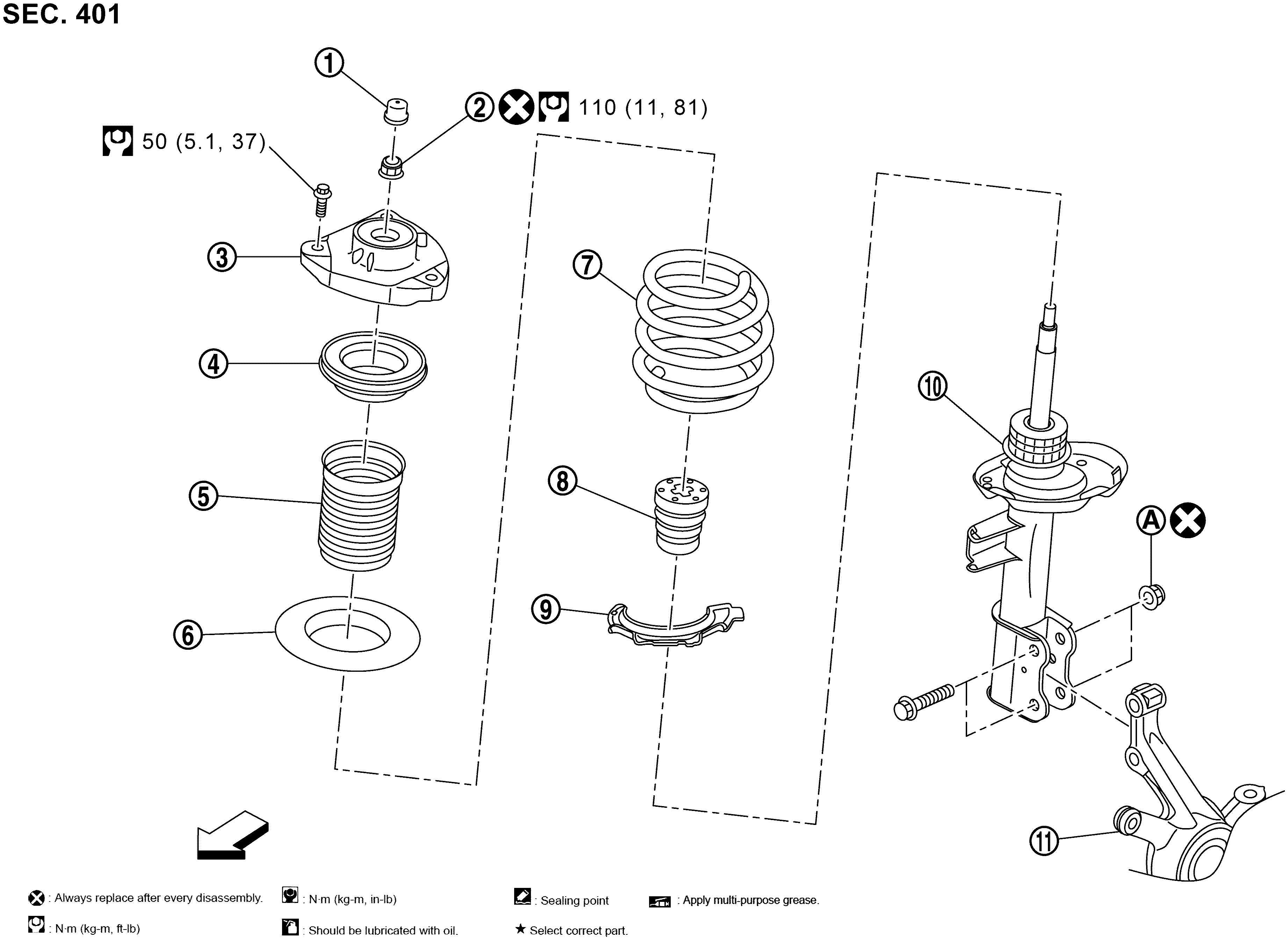

Exploded View

Fig 1: Front Coil Spring And Strut Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Cap	Piston rod lock nut	Mounting insulator
	Mounting bearing	Dust boot	Rubber seat
	Coil spring	Bound bumper	Lower rubber seat
	Strut	Steering knuckle
: Tightening must be done following the installation procedure. Refer to Removal and Installation .
: Vehicle front
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
