Exploded View

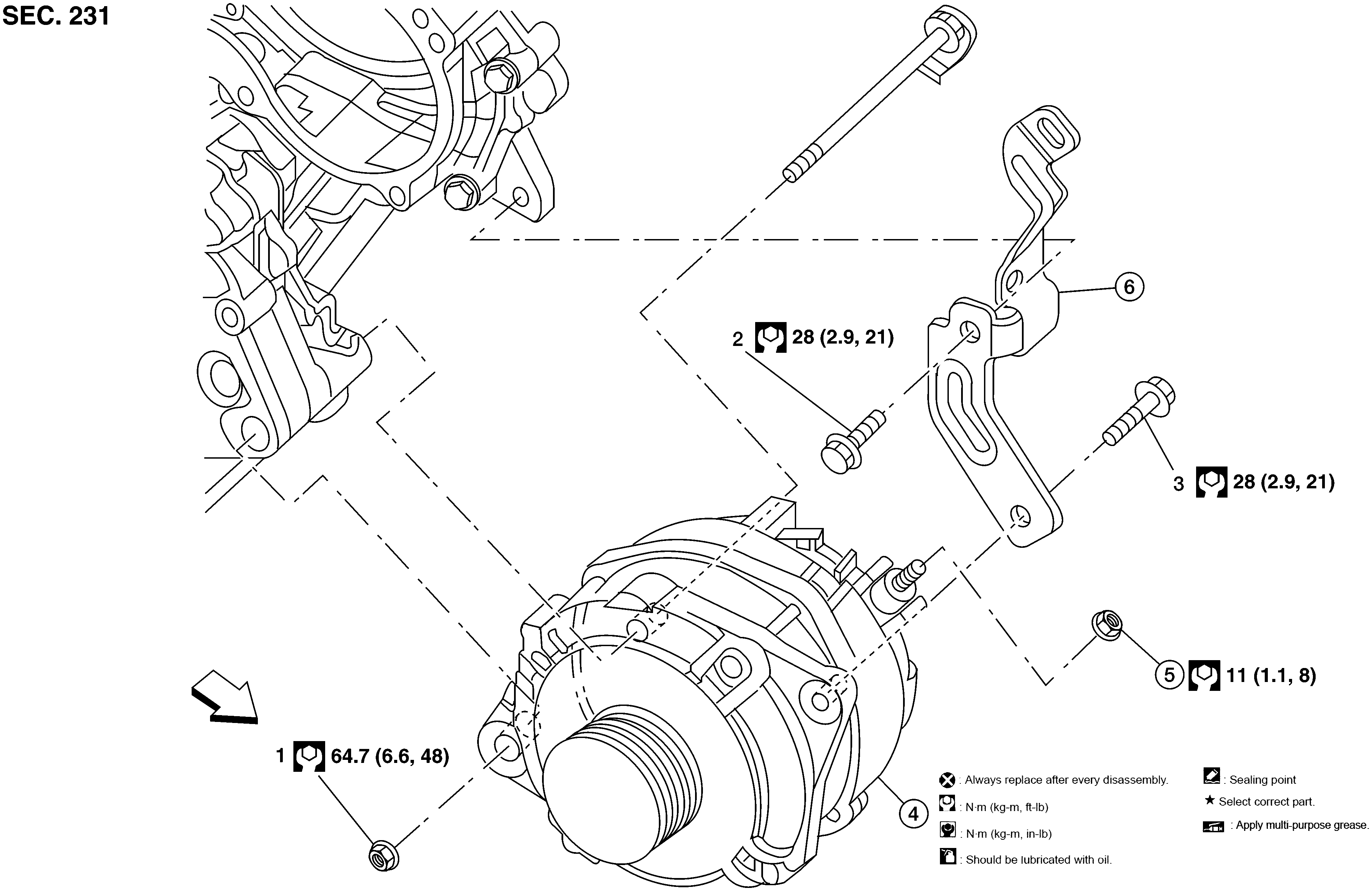

Fig 1: Generator With Torque Specifications
GNSAWBIA1097GB-097SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1 - 3

Tightening order

4.

Generator

5.

"B" terminal nut

6.

Generator bracket

SYMBOL

Front
