Exploded View

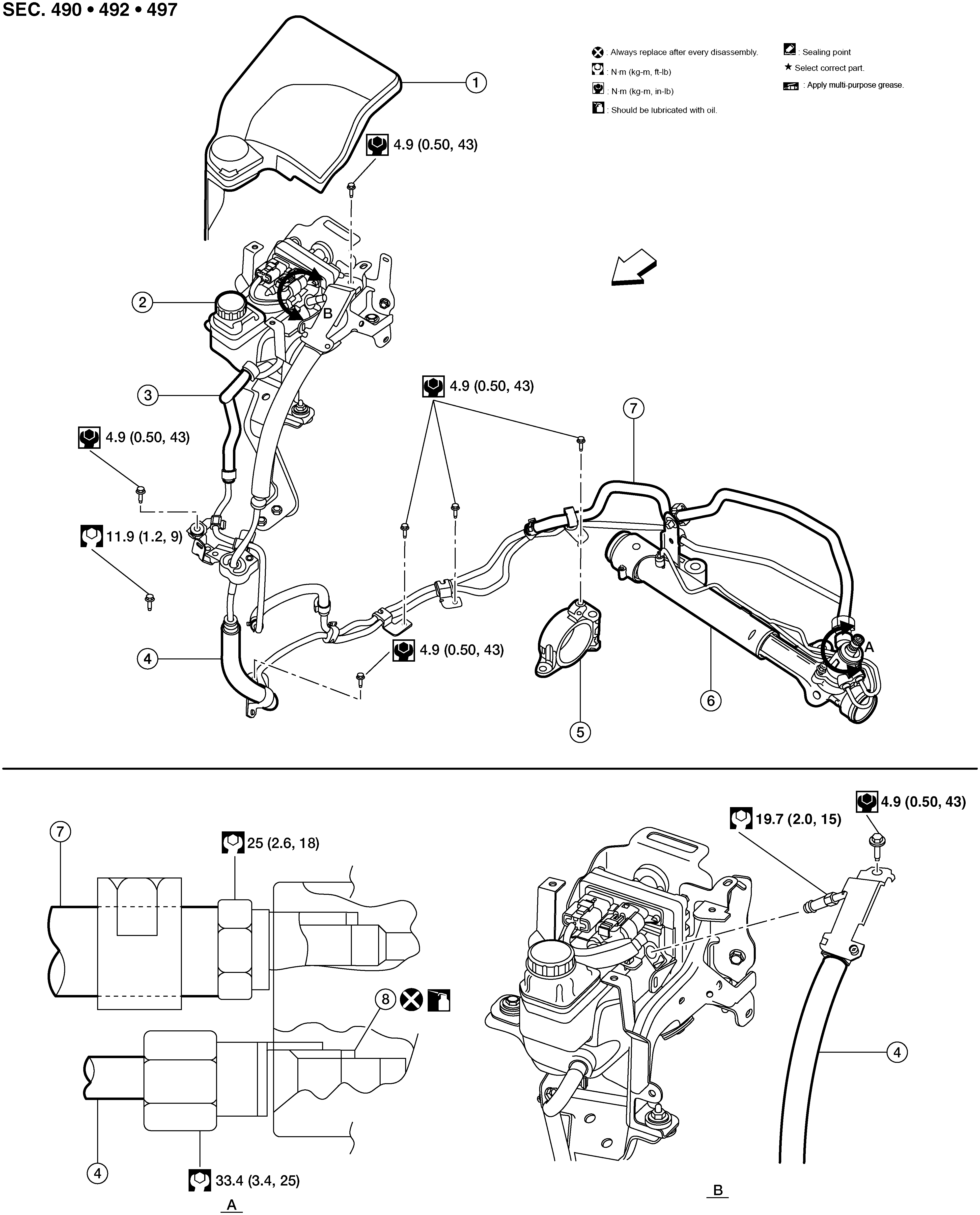

Fig 1: Hydraulic Line With Torque Specifications

GNSALGIA07Z-007

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cover	2.	Power steering oil pump	3.	Low pressure piping (upper)
4.	High pressure piping	5.	Engine mount	6.	Steering gear
7.	Low pressure piping (lower)	8.	O-ring	A.	Steering gear connection detail
B.	Power steering oil pump connection detail		Front

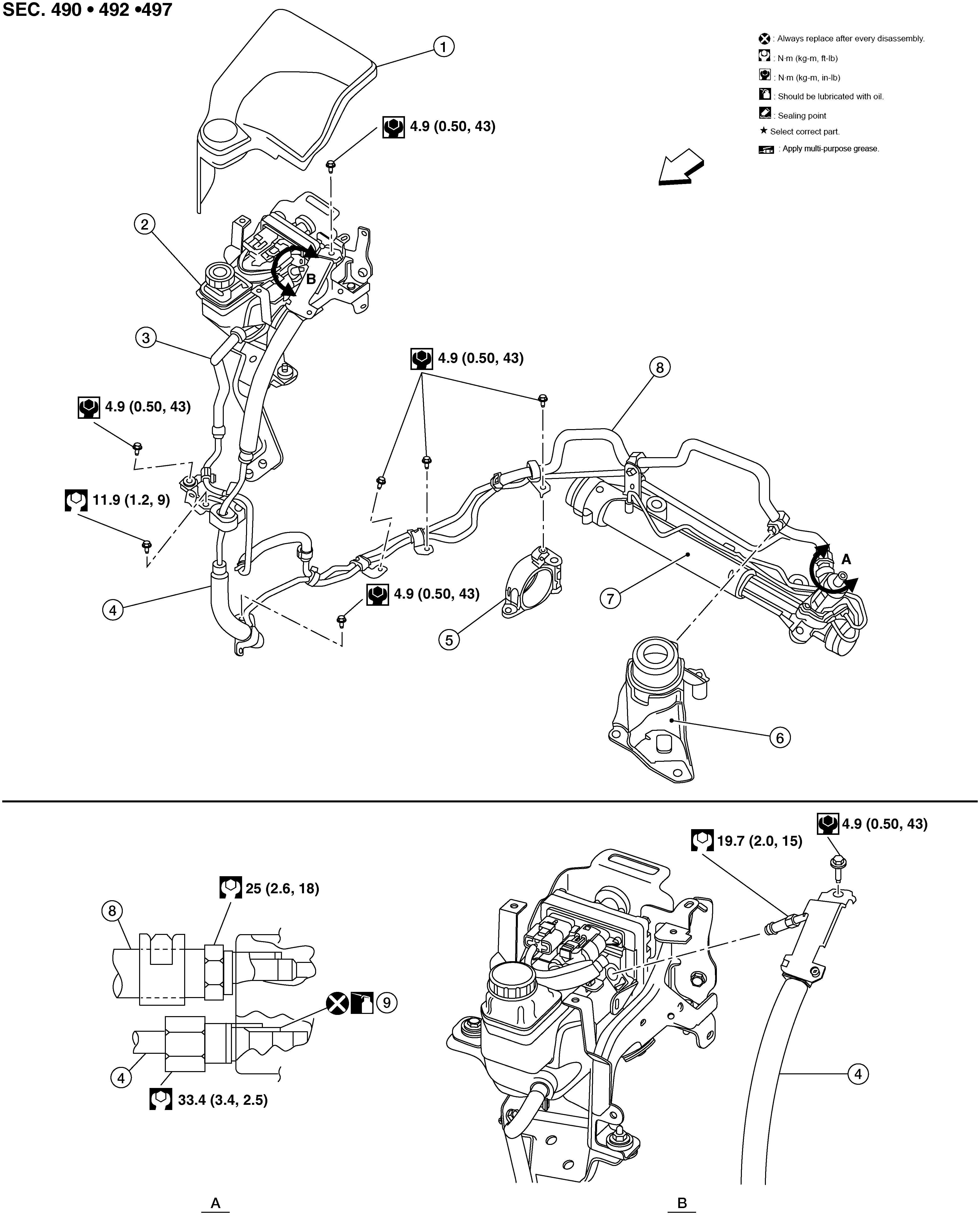

GNSALGIA08Z-008

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cover	2.	Power steering oil pump	3.	Low pressure piping (upper)
4.	High pressure piping	5.	Engine mount	6.	Engine mount bracket
7.	Power steering gear	8.	High pressure piping (lower)	9.	O-ring
A.	Steering gear connection detail	B.	Power steering oil pump connection detail		Front
