Exploded View

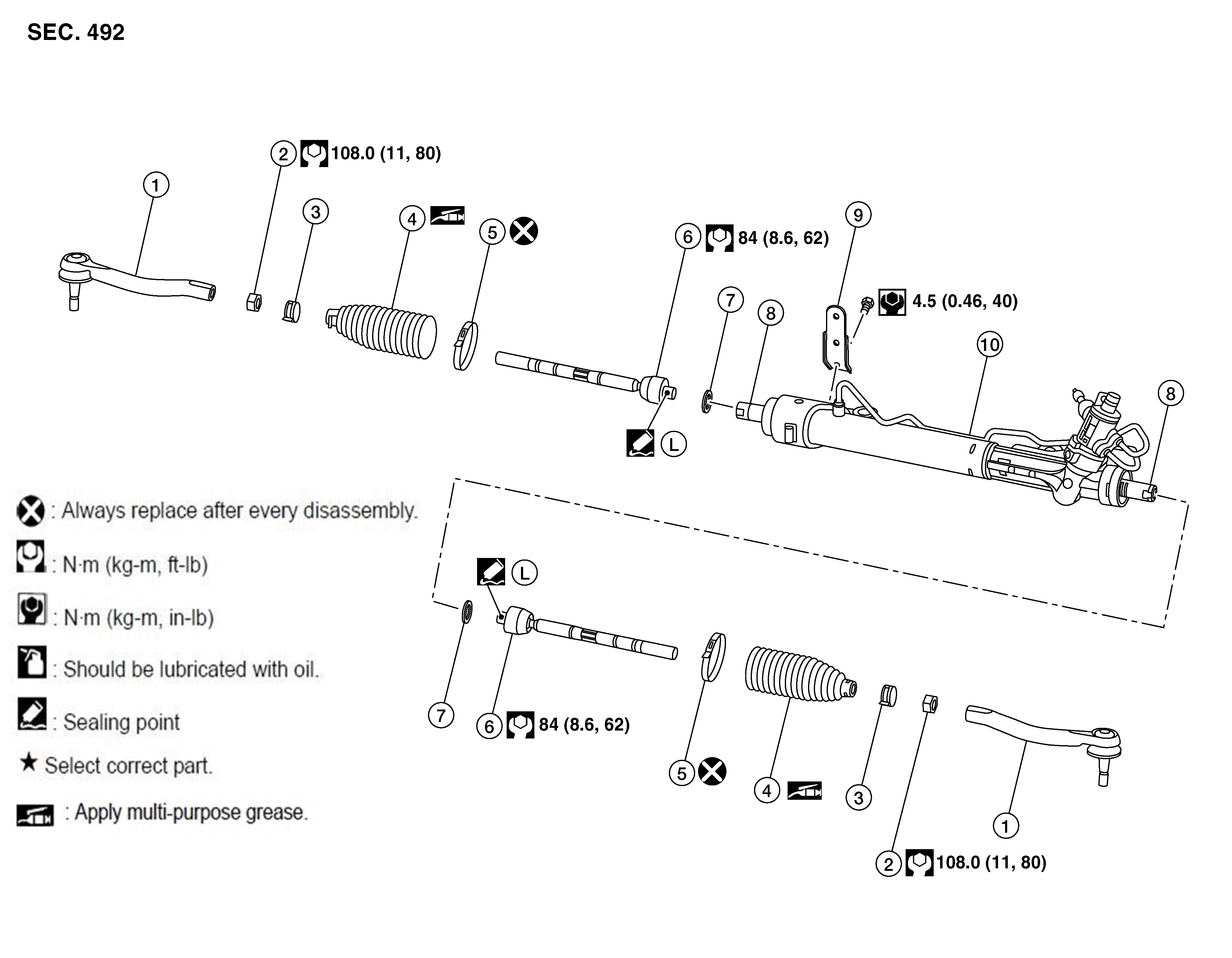

Fig 1: Steering Gear and Linkage Unit Disassembly And Assembly With Torque Specifications
GNSALGIA0199Z-199Courtesy of NISSAN NORTH AMERICA, INC.

1.

Outer socket

2.

Inner socket lock nut

3.

Small boot clamp

4.

Boot

5.

Large boot clamp

6.

Inner socket

7.

Spacer

8.

Rack bar (not serviceable)

9.

Bracket

10.

Steering gear
