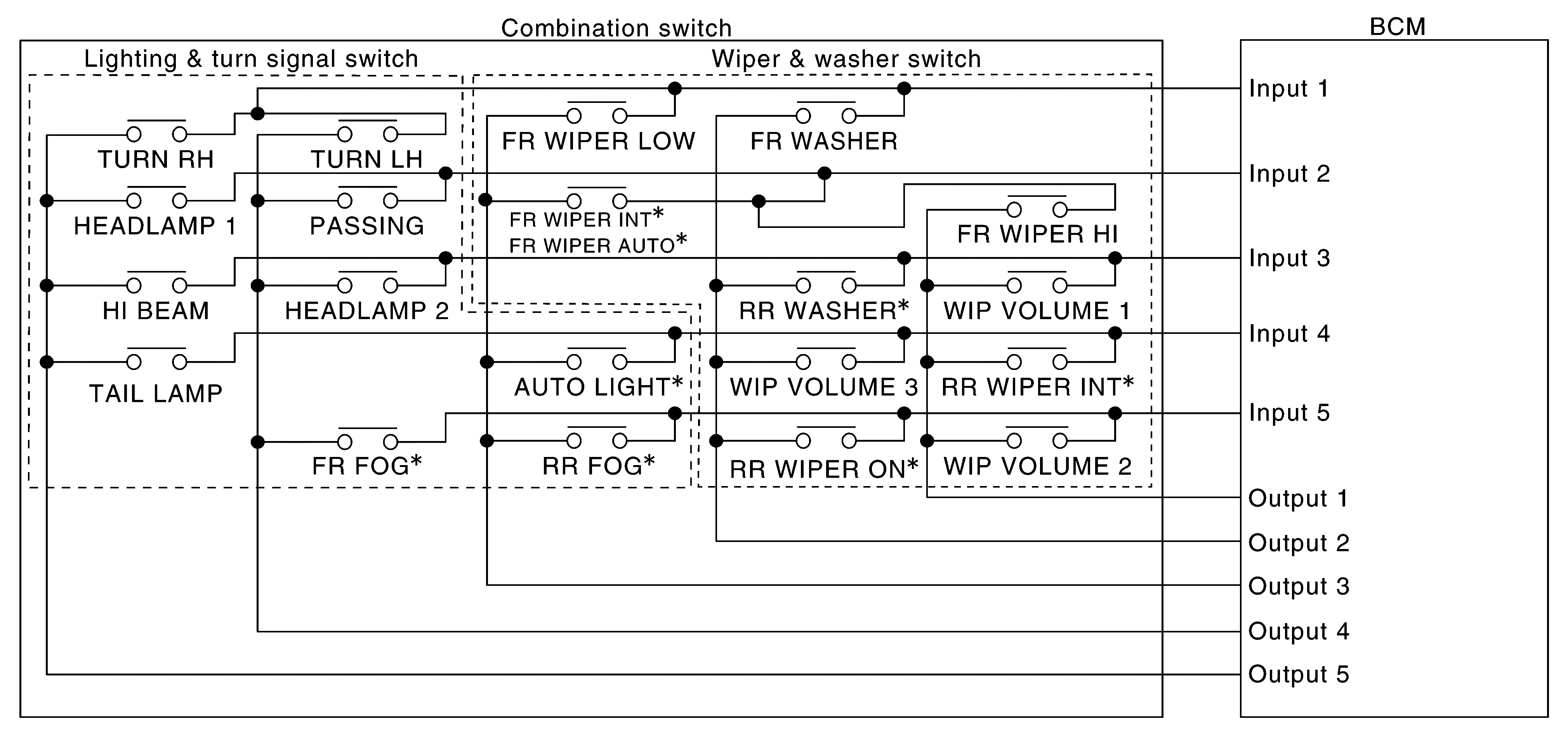

System Diagram

G09164092

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

*: If so equipped.
TAIL LAMP switch links lighting switch 1ST and 2ND positions.
